3/8″ Hex Shank Drill Bit with Hole Plugs
$25.00
Description
3/8″ Hex Shank Drill Bit with Hole Plugs

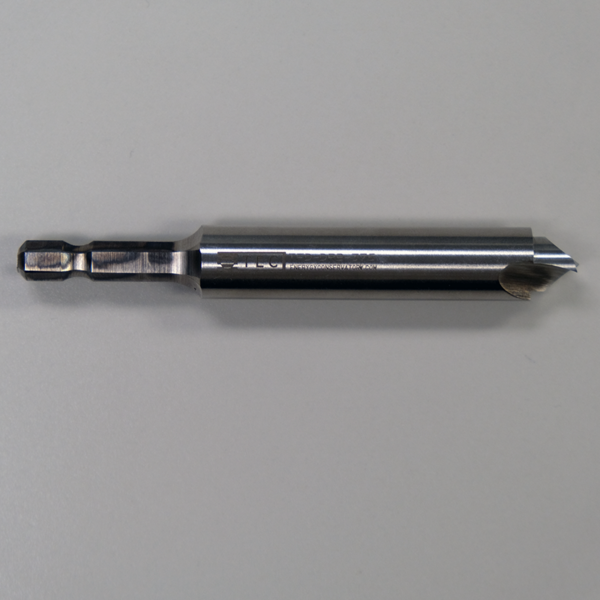

This drill bit is specially designed for drilling into HVAC equipment during testing with the Digital TrueFlow® Air Handler Flow Meter. The 3/8-inch diameter drill bit extends only 5/16-inch from the milled drill stop to help prevent damage to equipment contained in the cabinet. The drill bit features a 1/4 quick-change hex shank for use with a wide variety of drills and drivers.

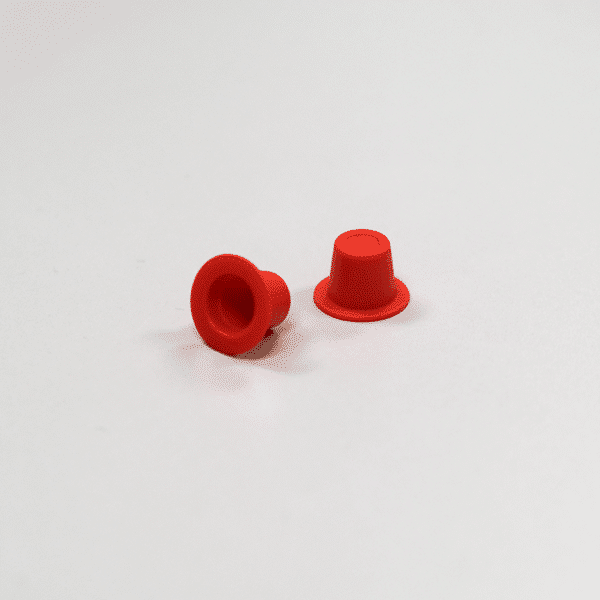

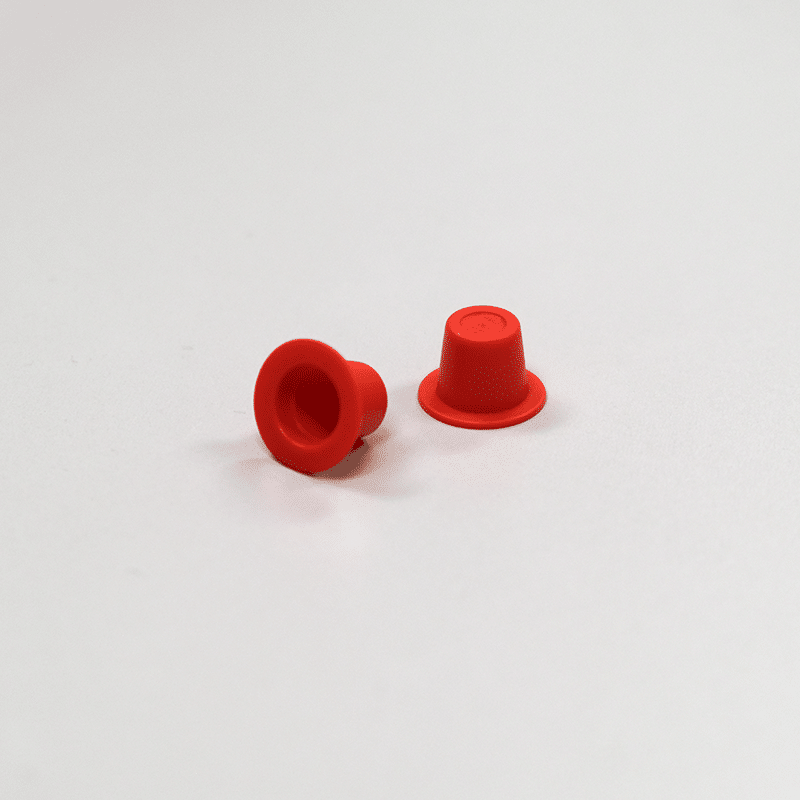

The 25 included hole plugs are the perfect size to plug holes made with the 3/8″ drill bit and easy to remove for future testing.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 4 × 2 × 0.5 in |
Related Products
3/8″ Hex Shank Drill Bit with Hole Plugs
This drill bit is specially designed for drilling into HVAC equipment during testing with the Digital TrueFlow® Air Handler Flow Meter. The 3/8-inch diameter drill bit extends only 5/16-inch from the milled drill stop to help prevent damage to equipment contained in the cabinet. The drill bit features a 1/4 quick-change hex shank for use with a wide variety of drills and drivers.
The 25 included hole plugs are the perfect size to plug holes made with the 3/8″ drill bit and easy to remove for future testing.
3/8″ Hex Shank Drill Bit with Hole Plugs Specifications:
Drill Bit
- Hole diameter: 0.375 (3/8) inch
- Drill depth: 0.313 (5/16) inch
- Shaft/stop diameter: 0.5 (1/2) inch
- Overall length: 3.8 inches
- Shank: 1/4 inch quick-change hex
- Material: High Speed Steel (HSS)
Hole Plugs
- Material: Low-density polyethylene
- Fitting style: push fit
- Outside diameter range: 0.330 – .398 inch
- Inside diameter range: 0.275 – 0.327
- Flange diameter: 0.563 inch
- Overall height: 0.375 inch
3/8″ Hex Shank Drill Bit with Hole Plugs Includes:
- Quantity 1 hex shank drill bit
- Quantity 25 red static pressure probe plugs
