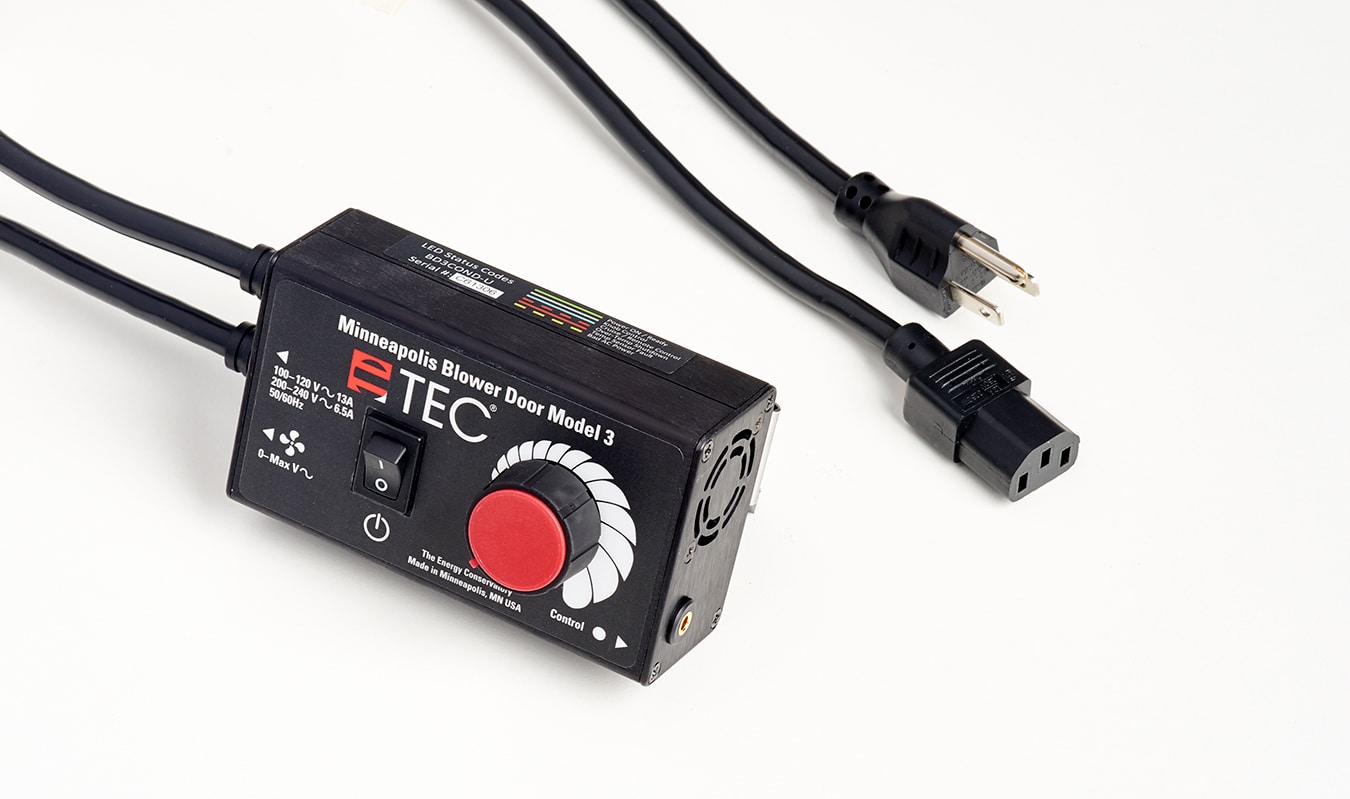

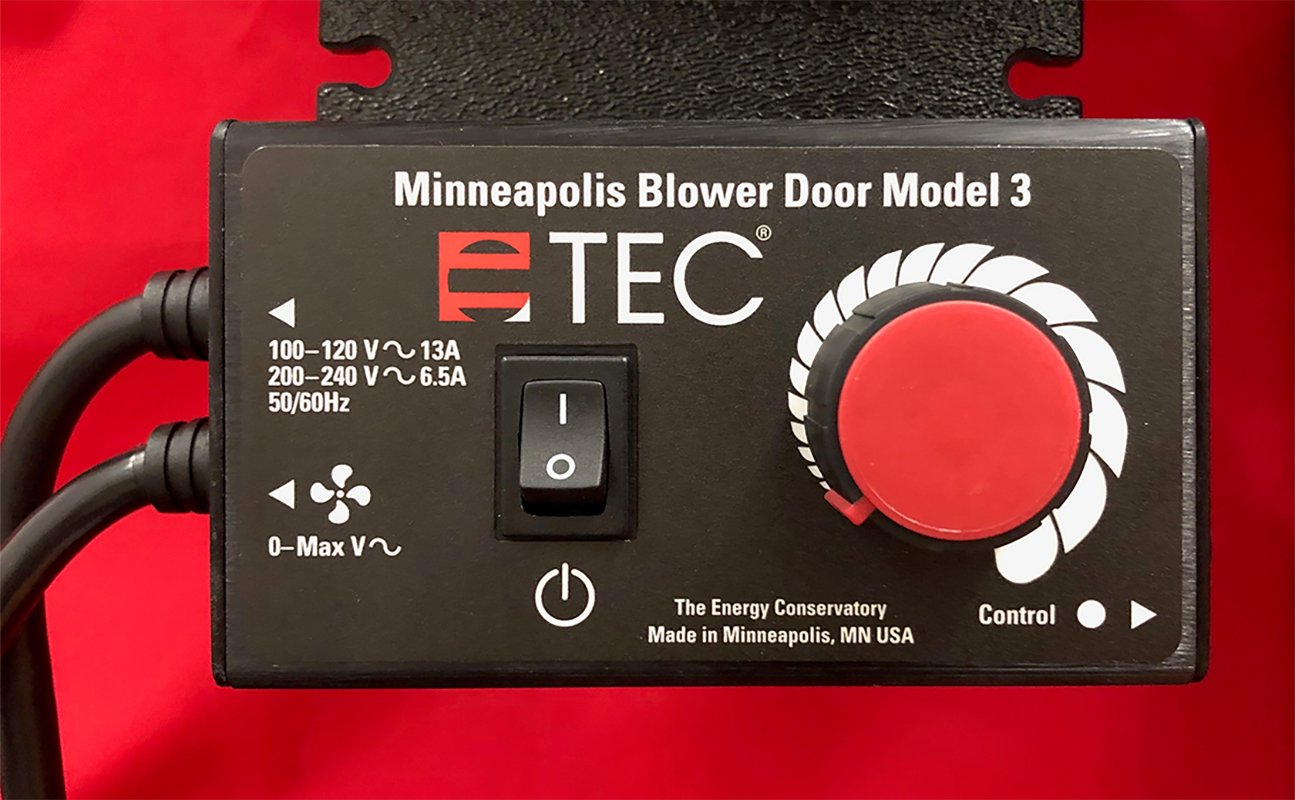

Minneapolis Blower Door™ Fan Speed Controller – Universal
$445.00
Description
Blower Door Fan Speed Controller – Universal
The Blower Door Fan Speed Controller provides variable speed control for both the 110V and 230V Model 3 Minneapolis Blower DoorTM fans.
Features
- This universal design can be used with 100-240V, 50/60 Hz AC power
- Color coded interior LED indicator for operation status or trouble shooting
- Fan speed control jack used to control fan speed during automated testing or using TEC’s digital gauge cruise control function (Fan control cable sold separately)
- Belt clip on the case back to help connect the controller to a gauge mounting board
Additional information
| Weight | 2.2 lbs |
|---|
Related Products
Blower Door Fan Speed Controller – Universal
The Blower Door Fan Speed Controller provides variable speed control for both the 110V and 230V Model 3 Minneapolis Blower DoorTM fans.
Features
- This universal design can be used with 100-240V, 50/60 Hz AC power
- Color coded interior LED indicator for operation status or trouble shooting
- Fan speed control jack used to control fan speed during automated testing or using TEC’s digital gauge cruise control function (Fan control cable sold separately)
- Belt clip on the case back to help connect the controller to a gauge mounting board
Blower Door Fan Speed Controller Specifications:
Power requirements:
- 100-120 Volt ∼13 Amp (when used with Model 3 110V fan)
- 200-240 Volt ∼6.5 Amp (when used with Model 3 230V fan)
- 50 or 60 Hz
Case Material
- Anodized Aluminum
Dimensions
- Case: 4.5 x 2.6 x 1.7 inch (WxHxL)
- Power Cord Length: 12 feet
- Fan Connect Cord Length: 9 feet 6 inch
Blower Door fan speed controller includes:
- Universal fan speed controller with connect and power cord attached to unit.
