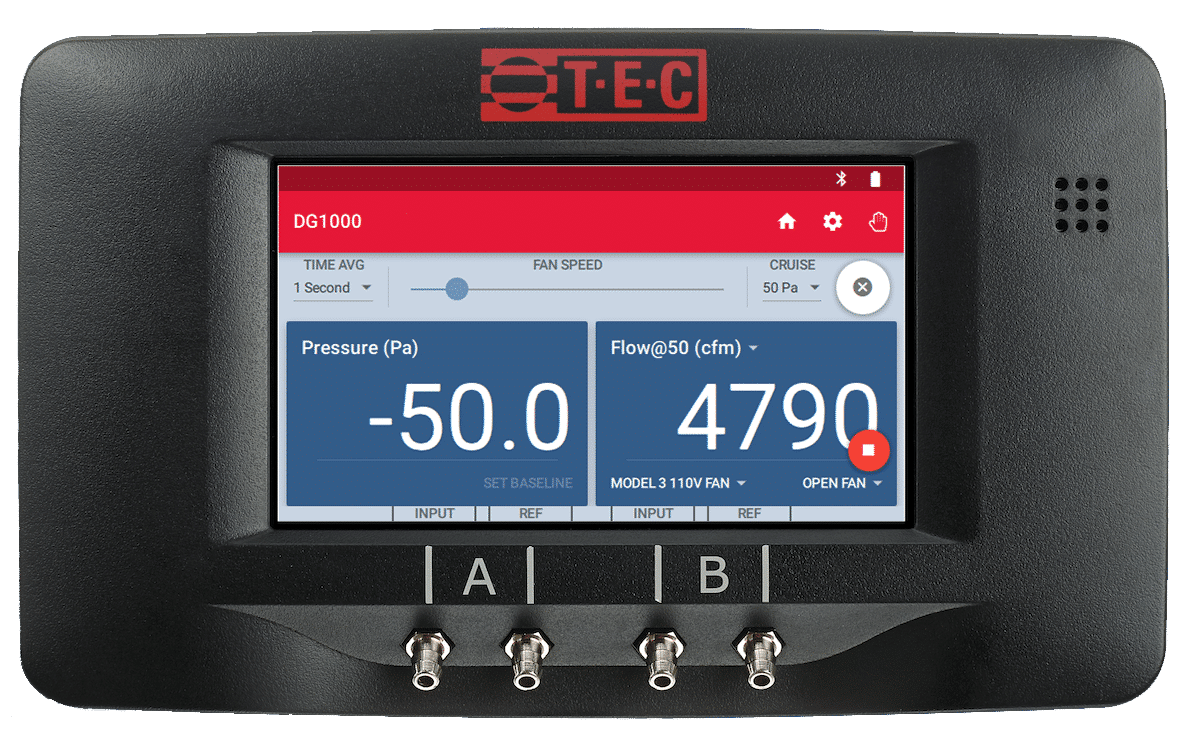

DG-1000 Digital Pressure and Flow Gauge
$1,990.00
Description
DG-1000 Digital Pressure and Flow Gauge
Two-channel digital micro manometer for pressure and flow measurements. Primarily used with Minneapolis Blower Door™ and Minneapolis DuctBlaster®
DG-1000 adds improved functionaily with latest round of free updates (July 2022)

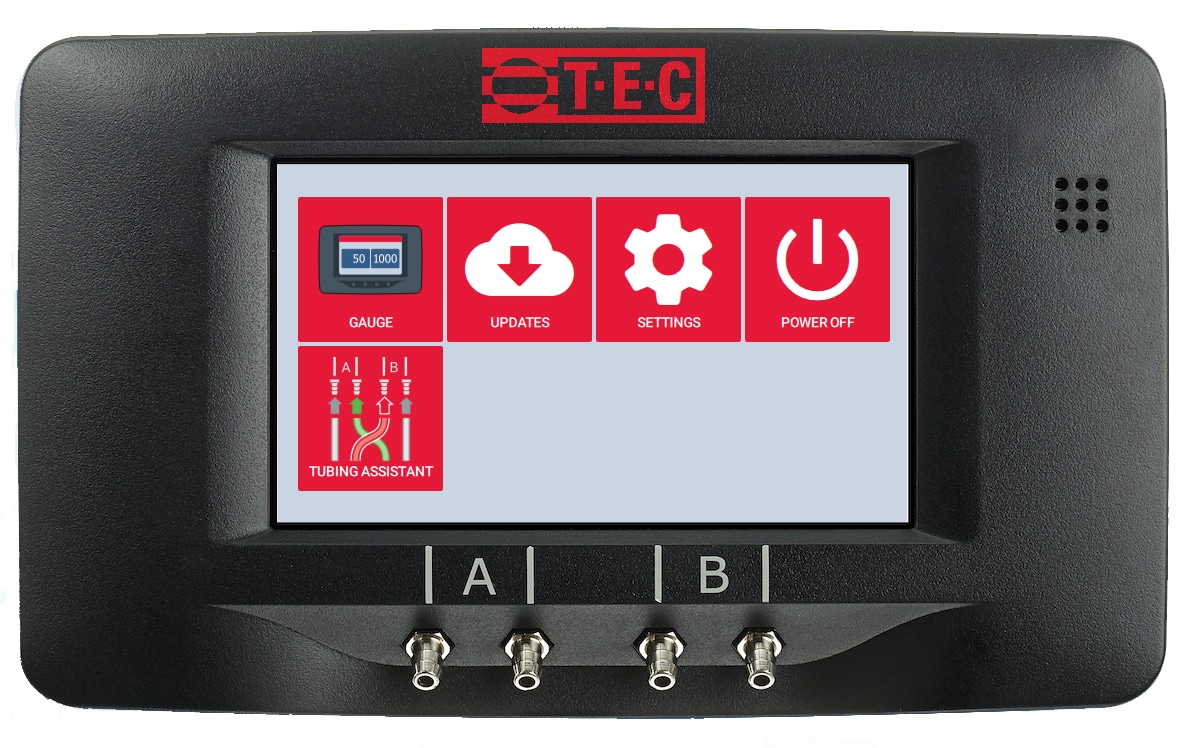

- To get the latest capabilities, simply hit the update button on the DG-1000 homescreen when connected to the internet.
- Latest update improves performance and enables new features
- Extends battery life by over 25% with Auto-dim feature
- Enhanced bluetooth connection and status informtation
- Improved workflow guidance – improving consistency of testing for new users
- High precision mode with 4th decimal point display for inH2O units – ideal for radon applications
Other Features

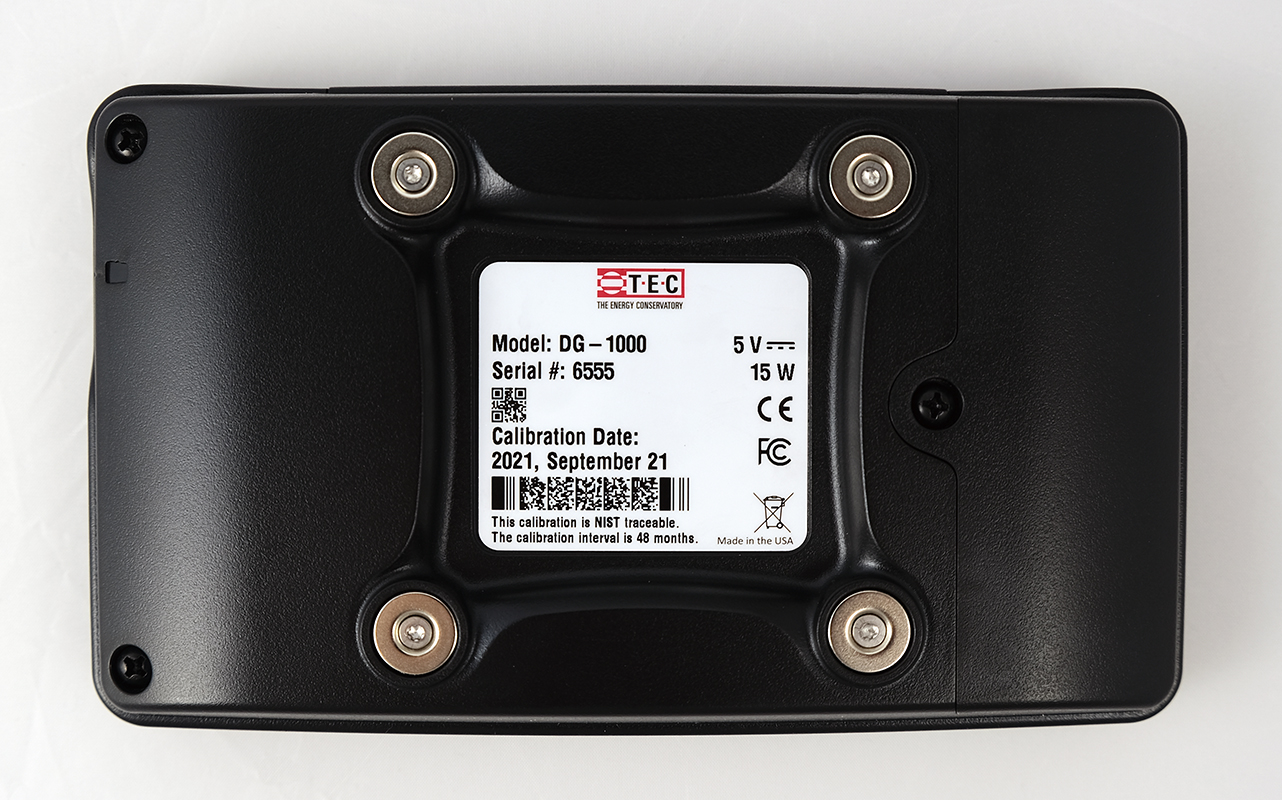

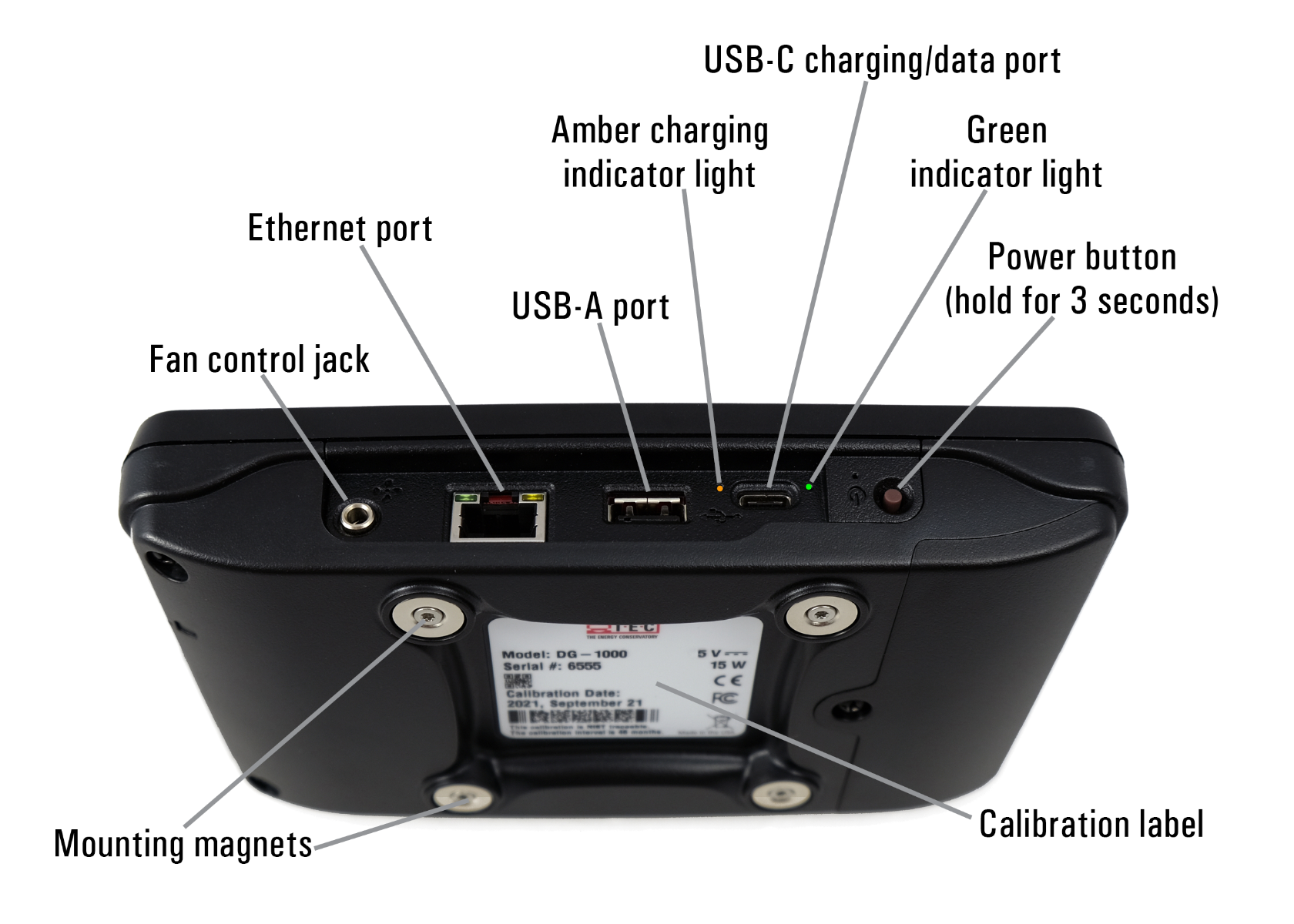

- Fast-charge & communication with USB-C. See photo of back panel for details.
- Fast and easy connections to AutoTest app via Bluetooth
- Runs embedded apps – including Tubing Assistant which simplifies set-up and makes training new people easier
- High Resolution Touch Screen: Gives you improved visibility and usability with the touch of your finger
- Intelligent Micro-Processor: Puts the power of a mini computer in the palm of your hand
- Future-Proof Technology: Continually equips you with the latest software and app additions
- Accurate Readings at 0.9%: Upholds your confidence of accurate results from TEC equipment
- Intuitive Landscape Orientation: Makes holding the DG-1000 naturally comfortable.
- Fan Speed Slider: Lets you control your fan directly from the gauge for efficient testing
- Hold Function: Gives you time to record readings with ease
- Tubing Assistant: Guides the user through a series of questions to determine the proper tubing connections for your application.
- Lithium Batteries: Equips you with a rechargeable and replaceable power source on the job
- Product Compatibility: Works with all TEC equipment and software for seamless use
- Bluetooth, WiFi, USB and Ethernet Ports: Provides you with a variety of connection options
- Texturized Durable Case: Ensures optimal grip in rugged environments and protects your gauge from accidental damage
- Powerful Mounting Magnets: Provides dependable and convenient mounting options
Additional information
| Weight | 3.4 lbs |
|---|
DG-1000 Digital Pressure and Flow Gauge
Two-channel digital micro manometer for pressure and flow measurements. Primarily used with Minneapolis Blower Door™ and Minneapolis DuctBlaster®
DG-1000 adds improved functionaily with latest round of free updates (July 2022)
- To get the latest capabilities, simply hit the update button on the DG-1000 homescreen when connected to the internet.
- Latest update improves performance and enables new features
- Extends battery life by over 25% with Auto-dim feature
- Enhanced bluetooth connection and status informtation
- Improved workflow guidance – improving consistency of testing for new users
- High precision mode with 4th decimal point display for inH2O units – ideal for radon applications
Other Features
- Fast-charge & communication with USB-C. See photo of back panel for details.
- Fast and easy connections to AutoTest app via Bluetooth
- Runs embedded apps – including Tubing Assistant which simplifies set-up and makes training new people easier
- High Resolution Touch Screen: Gives you improved visibility and usability with the touch of your finger
- Intelligent Micro-Processor: Puts the power of a mini computer in the palm of your hand
- Future-Proof Technology: Continually equips you with the latest software and app additions
- Accurate Readings at 0.9%: Upholds your confidence of accurate results from TEC equipment
- Intuitive Landscape Orientation: Makes holding the DG-1000 naturally comfortable.
- Fan Speed Slider: Lets you control your fan directly from the gauge for efficient testing
- Hold Function: Gives you time to record readings with ease
- Tubing Assistant: Guides the user through a series of questions to determine the proper tubing connections for your application.
- Lithium Batteries: Equips you with a rechargeable and replaceable power source on the job
- Product Compatibility: Works with all TEC equipment and software for seamless use
- Bluetooth, WiFi, USB and Ethernet Ports: Provides you with a variety of connection options
- Texturized Durable Case: Ensures optimal grip in rugged environments and protects your gauge from accidental damage
- Powerful Mounting Magnets: Provides dependable and convenient mounting options
DG-1000 Specifications:
Number of Independent Pressure Channels
- Two
Pressure Range
- -2,500 to +2,500 Pa (-10 to +10 in. H2O)
Display resolution
- 0.1 Pa for readings 0-999.9 Pa
- 1 Pa for readings 1000 Pa and larger
Accuracy at Typical Use Conditions (1,2)
- 0.9% of pressure reading or 0.12 Pa, whichever is greater
Units of Measure
- Channel A – Pa, in w.c.
- Channel B – Pa, in w.c., CFM, CFM@25, CFM@50, CFM@75, ACH50, CFM@25/ft2, CFM@25/100ft2, CFM@50/ft2, CFM@50/100 ft2, CFM@75/ft2, CFM@75/100 ft2 (flow units of l/s and m3/h also selectable)
Auto-zero
- On start up and then once every 10 seconds. Tilt and motion compensation between auto-zeros.
Time Averaging
- 1, 5, 10 seconds and long-term (continuous update)
Operating Temperature Range (3)
- 42 degrees F to 115 degrees F
Storage Temperature Range (4)
- -4 degrees F to 140 degrees F
Display
- 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen
Display Backlight
- User adjustable – default 40%
Power
- Two 18650 Lithium Ion batteries, replaceable, with AC charger/power adaptor included.
Battery Life
- Over 15 hours of continuous use with default settings
- 13 hours of continuous use with default settings and wi-fi active
- Use of Bluetooth does not significantly alter battery life of approximately 13 hours of operation.
Auto-Off
- Adjustable from 10 minutes to 2 hours
Languages Supported
- English, German, Spanish, French, Italian, Norwegian, Dutch, Portuguese, Chinese
Dimensions
- 7.0 x 4.2 x 1.4 inches
Weight
- 15.7 oz
Calibration
- Meets ASTM Standard E779-03, E1554-07, CGSB-149.10-M86, EN 13829, ISO 9972, ATTMA Technical Standard 1, NFPA 2001, RESNET AND USACE.
Recommended Calibration Interval
- Four Years
(1) Typical Conditions are a temperature range of 54° to 90° F, and a four year calibration interval.
(2) As Calibrated Accuracy is +/- (0.4% of reading + 0.045 Pa) under controlled conditions of 67° to 77° F, four month calibration interval, and pressure readings averaged for five seconds. All gauges are verified to meet this specification at all calibration pressures.
(3) For use at temperature conditions outside the typical conditions in Note 1, or the as-calibrated range in Note 2, add an additional 0.037% of pressure reading per degree F over the stated range.
(4) Storage limits are based on batteries. Storing outside these limits may require battery replacement.
DG-1000 kit includes:
- DG-1000 Digital Pressure and Flow Gauge
- Carrying case
- Two Lithium Ion batteries – installed
- USB-C power adapter charger
- Screen protector
- 15′ green hose
- 10′ red hose
- Fan control cable
- Digital gauge extension tube
- Plastic hose connectors
- Calibration certificate
