Pressure Pan – Large – 22x22x2
$195.00
Description

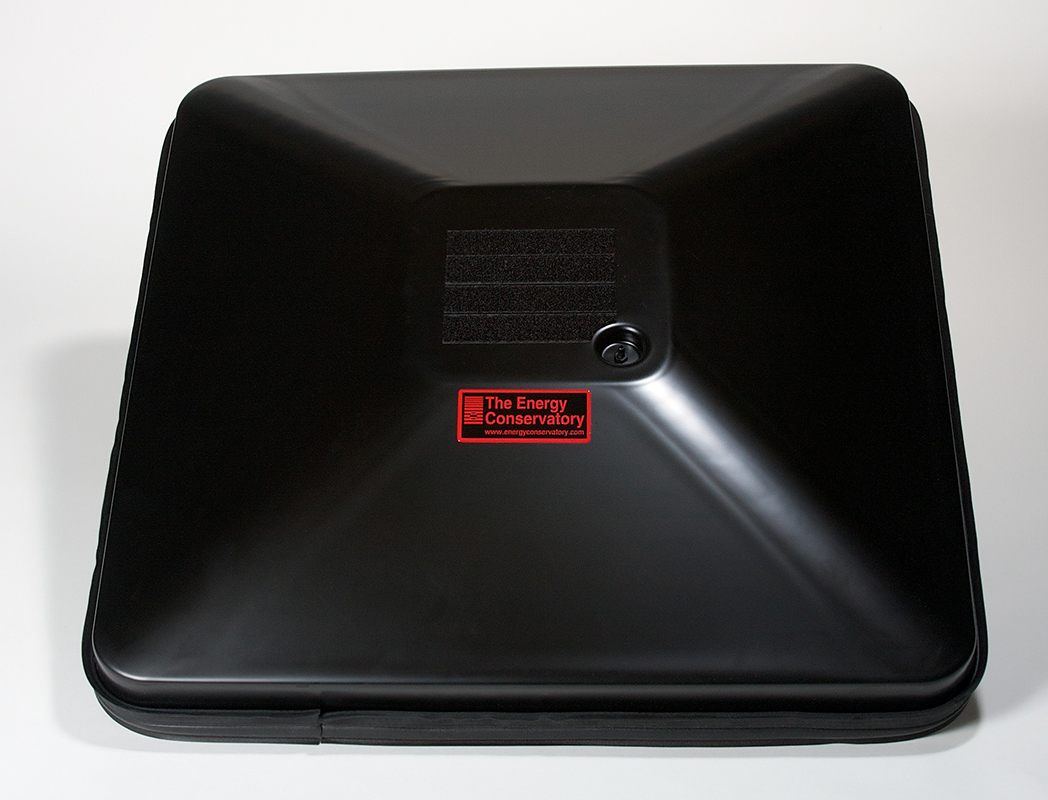

Pressure Pan – Large 22″x22″x2″
The Pressure Pan is a duct leakage diagnostic tool which is used along with the Blower Door and digital pressure gauge to identify exterior air leaks in forced air duct systems. It is most effective when a significant portion of the duct system is located outside the conditioned house space (e.g. attics, crawlspaces, garages). Generally, the higher the pressure pan reading, the leakier that part of the duct system is to the outside.
Pressure pans do not directly measure leakage rates. Rather, a pressure pan is used to measure the pressure difference between the house and a duct run during a Blower Door test. This pressure reading can be used to estimate the degree to which a particular duct run is connected to the outside.
Features
- Flexible gasket around the opening of the pan helps create a seal around the registers while taking the pressure reading.

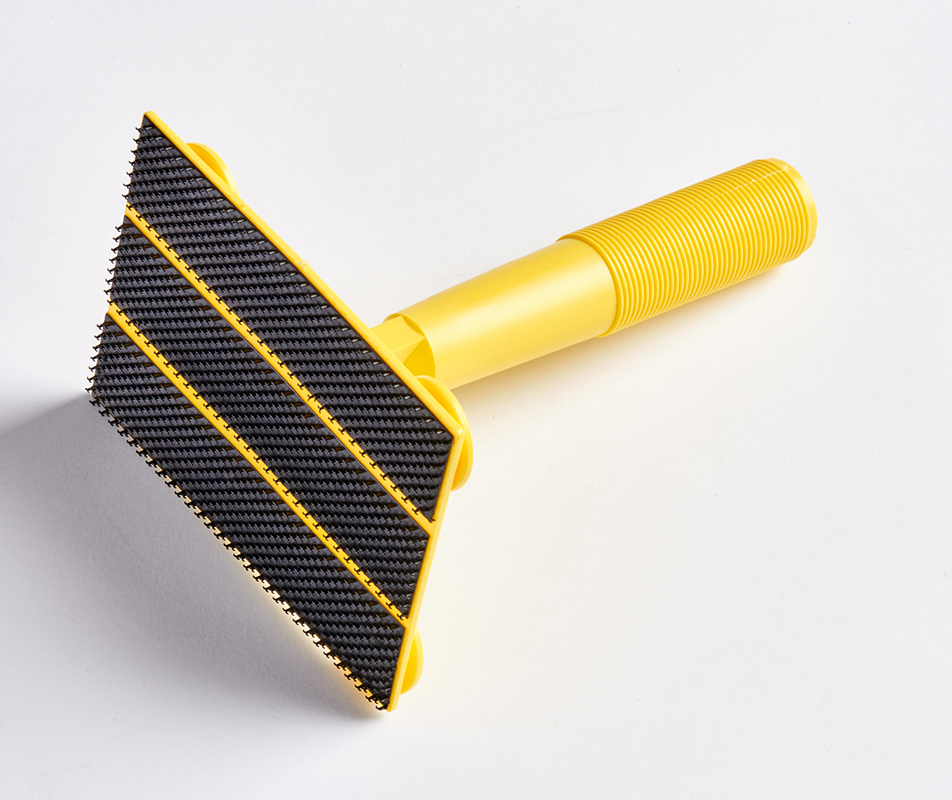

- Short yellow handle comes threaded so that a standard painters pole can be attached to handle for added length.
Additional information
| Weight | 3 lbs |
|---|
Related Products
Pressure Pan – Large 22″x22″x2″
The Pressure Pan is a duct leakage diagnostic tool which is used along with the Blower Door and digital pressure gauge to identify exterior air leaks in forced air duct systems. It is most effective when a significant portion of the duct system is located outside the conditioned house space (e.g. attics, crawlspaces, garages). Generally, the higher the pressure pan reading, the leakier that part of the duct system is to the outside.
Pressure pans do not directly measure leakage rates. Rather, a pressure pan is used to measure the pressure difference between the house and a duct run during a Blower Door test. This pressure reading can be used to estimate the degree to which a particular duct run is connected to the outside.
Features
- Flexible gasket around the opening of the pan helps create a seal around the registers while taking the pressure reading.
- Short yellow handle comes threaded so that a standard painters pole can be attached to handle for added length.
Large Pressure Pan Specifications:
Pan Material:
- Thermoformed ABS Plastic
Gasket Material:
- EPDM Rubber
Pressure Tap:
- Black Nylon
- For use with 1/8 inch ID flexible hose
Dimensions:
- 22 x 22 x 4.5 inch (WxHxD)
Weight:
- 3 lbs.

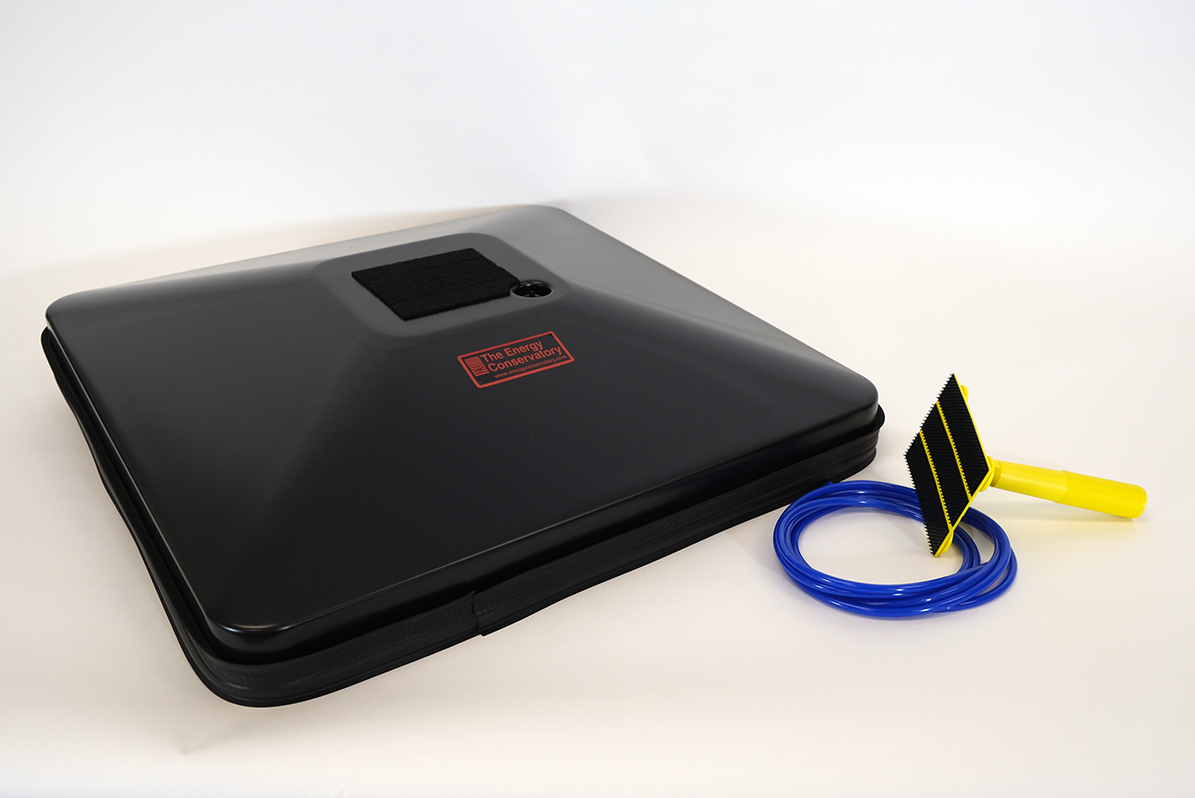

Pressure Pan Large includes:
- Large pressure pan box
- Yellow handle
- One Blue 10′ length Hose
