Minneapolis Blower Door™ Ring A
$150.00
Description

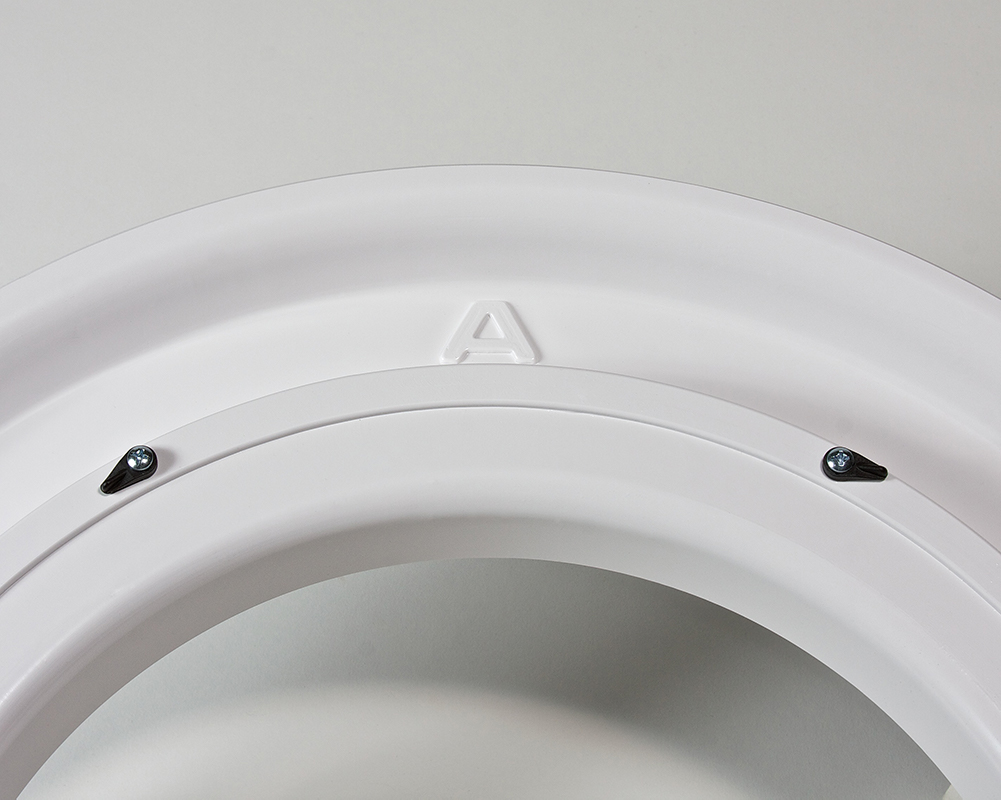

Blower Door Flow Ring A
Ring A is included in the standard flow ring set for the Model 3 & 4 Minneapolis Blower Door™ fans. Ring A measures air flows between 2,800 – 915 CFM. Ring A attaches to the fan housing with 8 fastener clips on the inlet side of the fan.
Additional information
| Weight | 1.2 lbs |
|---|
Related Products
Blower Door Flow Ring A
Ring A is included in the standard flow ring set for the Model 3 & 4 Minneapolis Blower Door™ fans. Ring A measures air flows between 2,800 – 915 CFM. Ring A attaches to the fan housing with 8 fastener clips on the inlet side of the fan.
Ring A Specifications:
Material:
- Thermoformed Virgin ABS Plastic
Flow Range:
- 2,800 – 915 CFM
Dimensions:
- 22.8 inch diameter
- 1.8 inch depth
Weight:
- 1.2 lbs.
Ring A for Blower Door Fan™ includes:
- One Ring A
