Minneapolis Blower Door™ Ring D
$105.00
Description

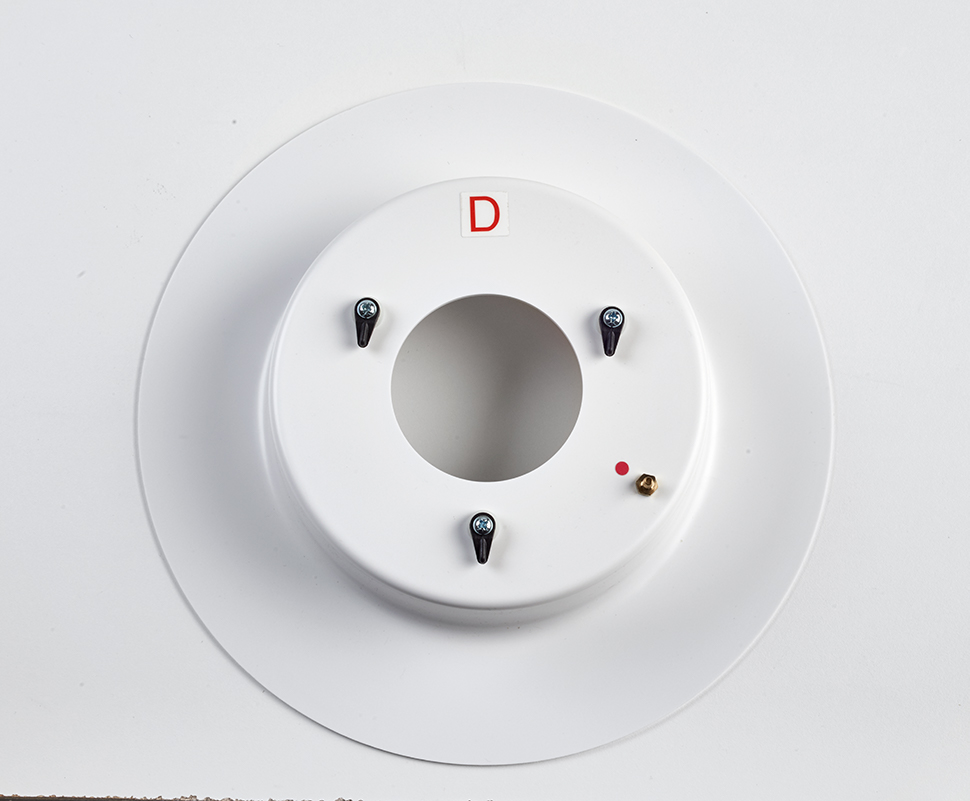

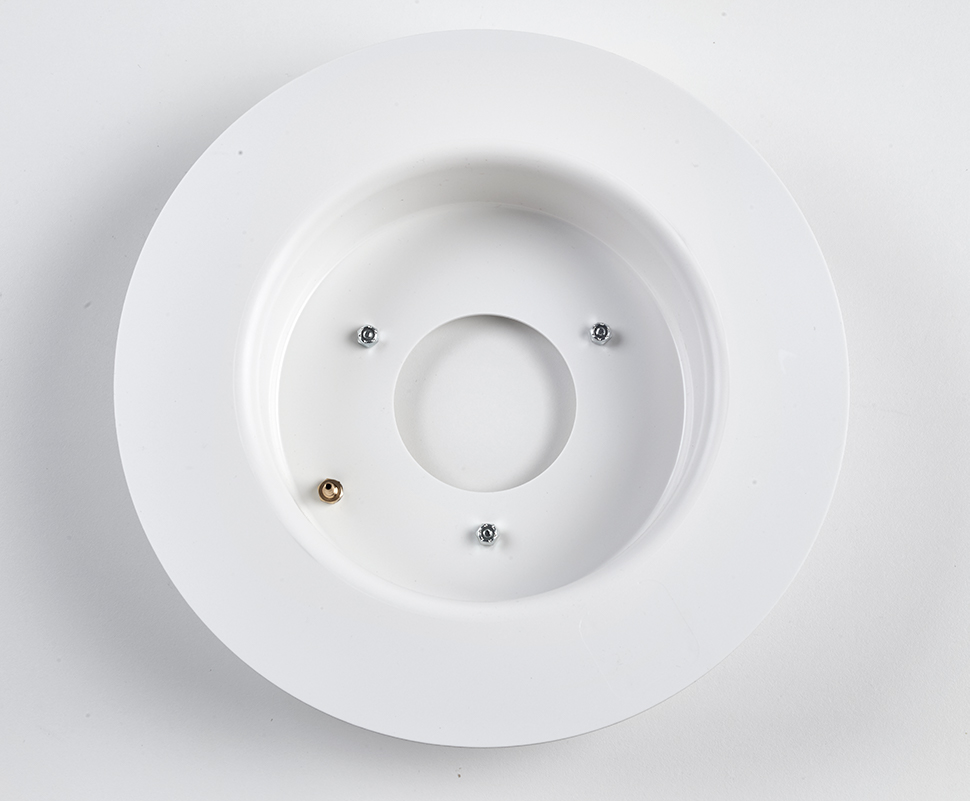

Blower Door Fan Flow Ring D

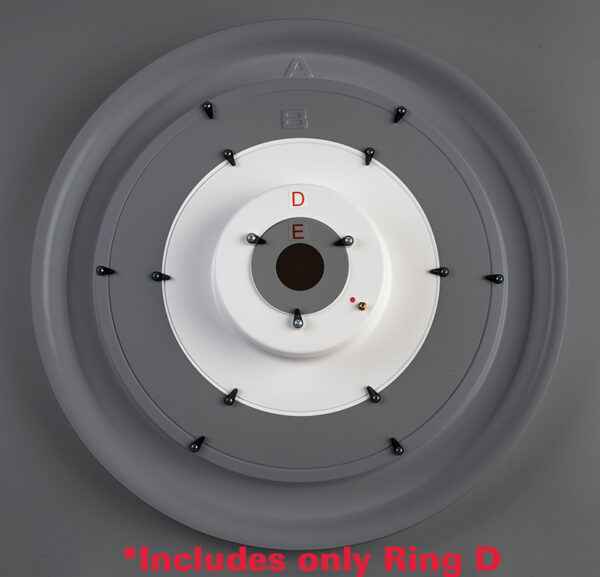

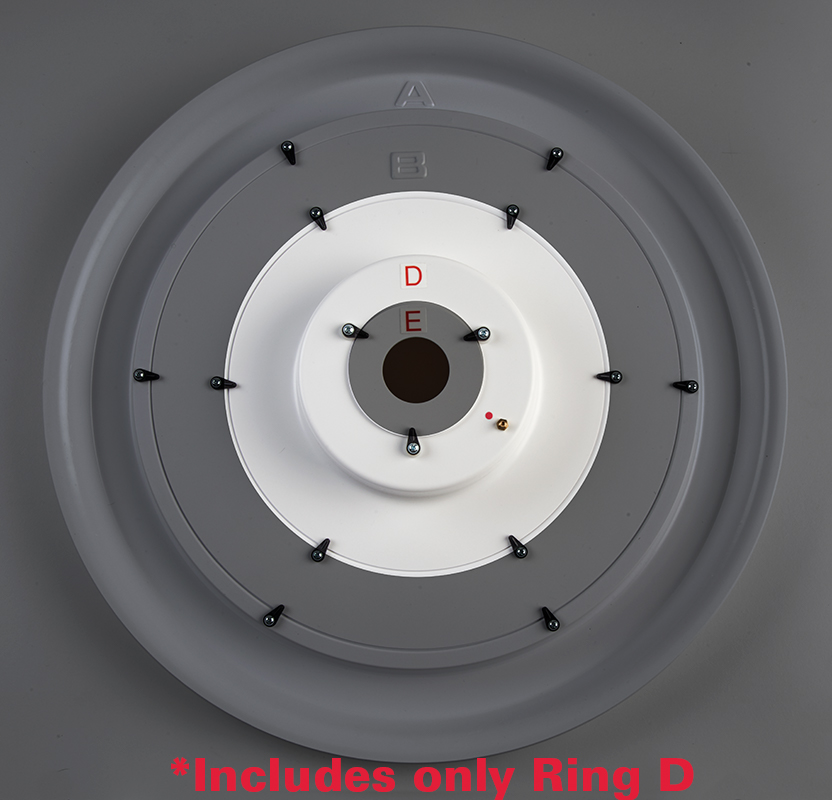

Ring D is an optional flow ring for Model 3 & 4 Minneapolis Blower Door™ fans. Ring D measures air flows between 115 – 30 CFM. Ring D attaches inside Ring B by rotating the 6 fastener clips. When using Ring D, fan pressure is measured by using the pressure tap mounted directly on Ring D, rather than the tap on the top of the fan.
Please note that Ring D is required when using Ring E with the Minneapolis Blower Door™ fan.
Additional information
| Weight | 0.4 lbs |
|---|
Related Products
Blower Door Fan Flow Ring D
Ring D is an optional flow ring for Model 3 & 4 Minneapolis Blower Door™ fans. Ring D measures air flows between 115 – 30 CFM. Ring D attaches inside Ring B by rotating the 6 fastener clips. When using Ring D, fan pressure is measured by using the pressure tap mounted directly on Ring D, rather than the tap on the top of the fan.
Please note that Ring D is required when using Ring E with the Minneapolis Blower Door™ fan.
Ring D Specifications:
Ring Material:
- Termoformed Virgin ABS Plastic
Pressure Tap:
- Solid brass
- For use with 1/8 inch ID flexible hose
Flow Range:
- 115 – 30 CFM
Dimensions:
- 11.4 inch diameter
- 1.9 inch depth
Weight:
- 0.4 lbs.
Ring D for Blower Door Fan™ includes:
- One Ring D
