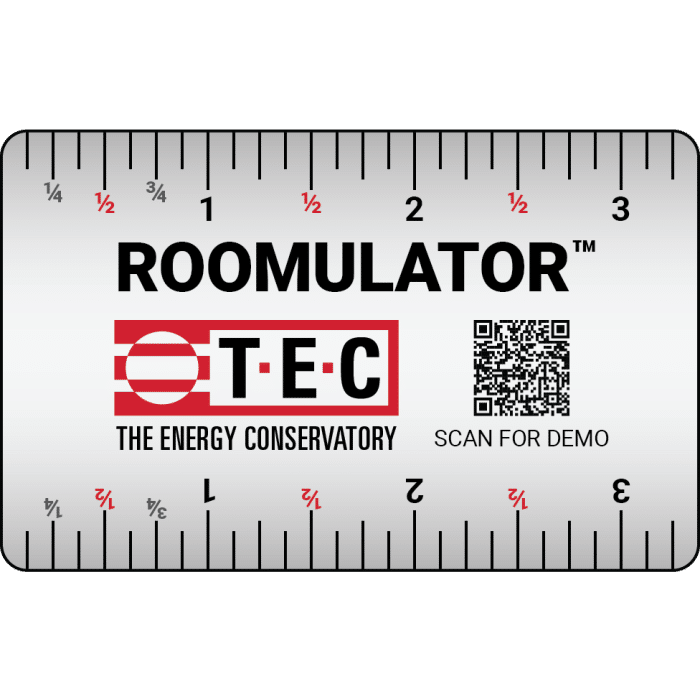

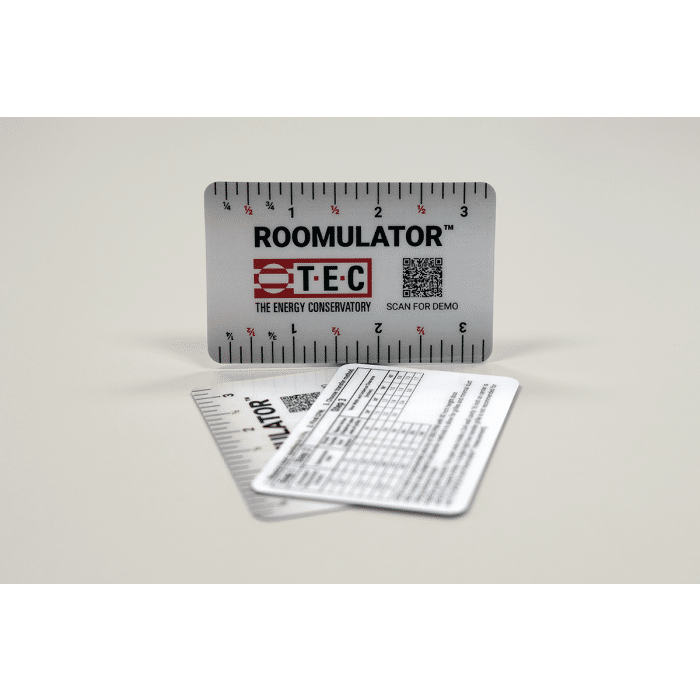

Roomulator™ Measurement Card (3-pack)
$5.00
Description

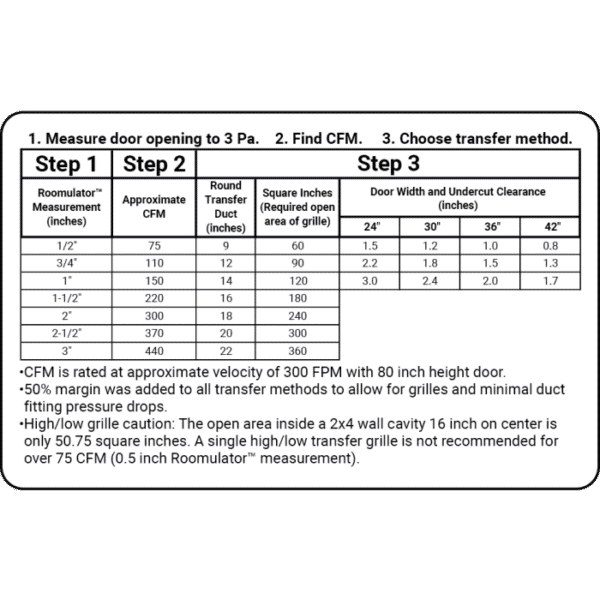

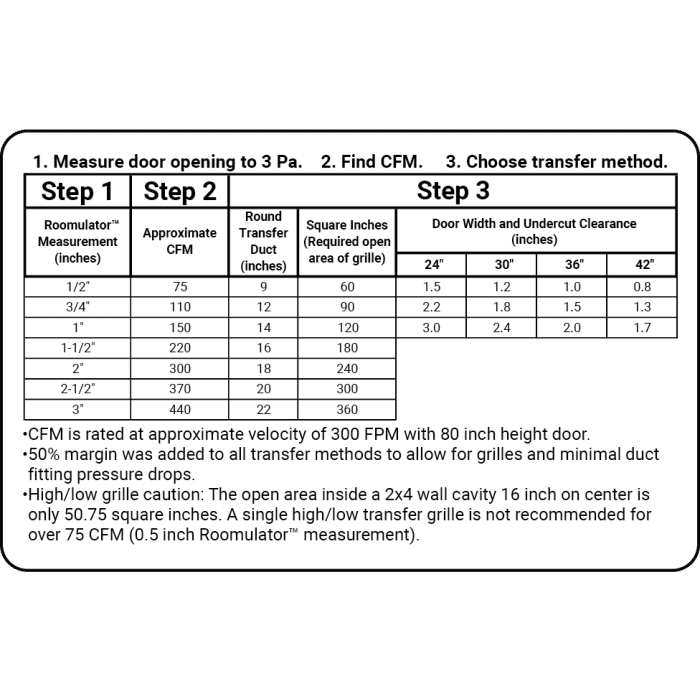

The Roomulator™ is a cost-effective tool that can be used in combination with our DG-8 or DG-1000 micro-manometer for the purpose of solving pressurized rooms. Simply monitor differential pressure across a doorway until approximately three pascals of pressure is obtained. Once you have your measurement, refer to the back of the Roomulator™ to choose the proper passive return air strategy.
Additional information
| Weight | 0.01 lbs |
|---|---|
| Dimensions | 3.375000 × 2.125000 × 0.030000 in |
Related Products
The Roomulator™ is a cost-effective tool that can be used in combination with our DG-8 or DG-1000 micro-manometer for the purpose of solving pressurized rooms. Simply monitor differential pressure across a doorway until approximately three pascals of pressure is obtained. Once you have your measurement, refer to the back of the Roomulator™ to choose the proper passive return air strategy.
Roomulator™ Measurement Card Specifications:
Dimensions
- 3.375 x 2.125 inches
- Sized identically to a credit card
Material
- 3 mil thick (0.30 inch) laminated PVC plastic
Roomulator™ Measurement Card (3-pack) Includes:
- Quantity 3 Roomulator™ measurement cards
