Static Pressure Port and Plug (Bag of 100)
$118.00
Description
Static Pressure Ports & Plugs (Bag of 100)

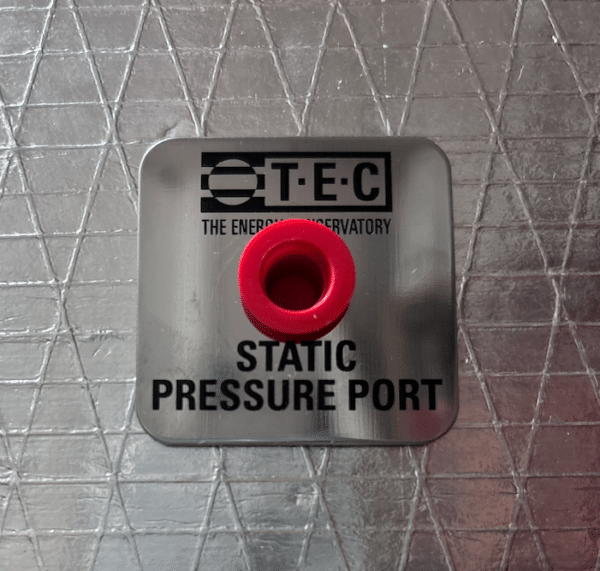

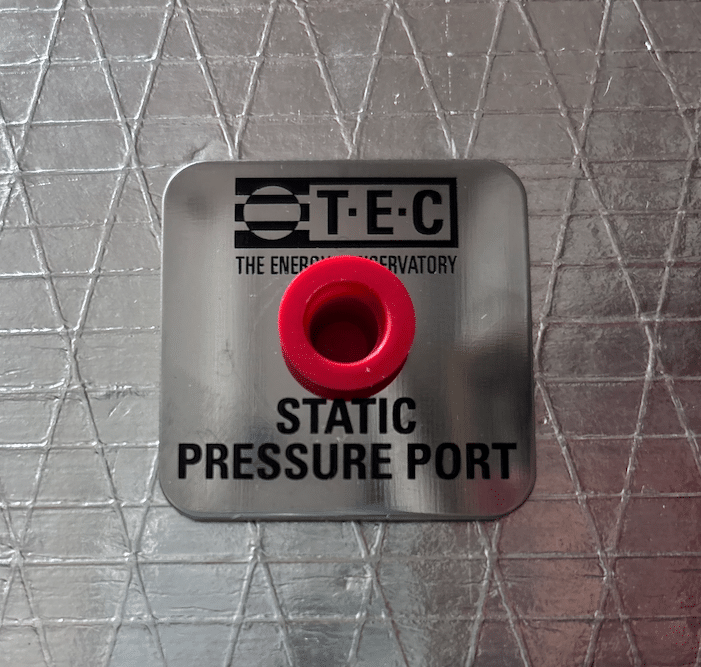

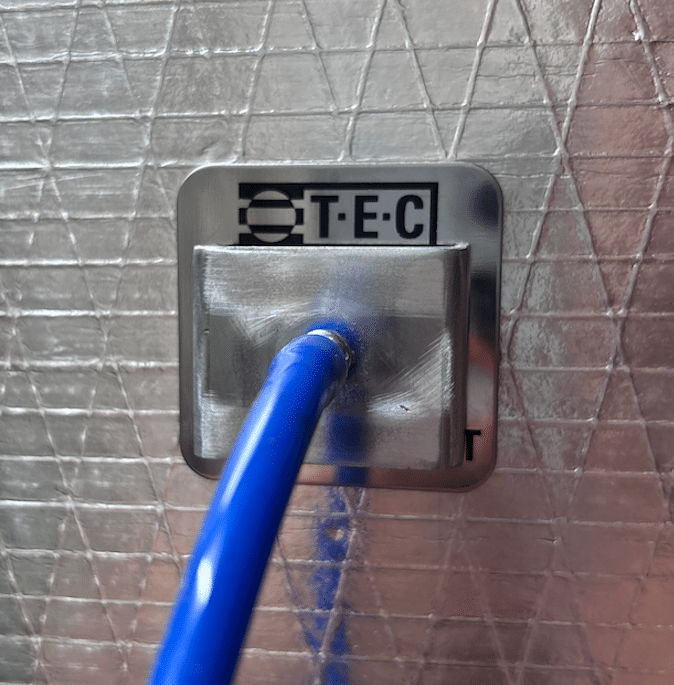

The static pressure port & plug combination is a professional way to cover drill holes left in duct work after Digital TrueFlow® and static pressure testing. The static pressure port is constructed with an adhesive back to ensure a firm hold to all different types of duct materials. The tapered plug is designed to fit properly into the static pressure port center, but can also be used in other holes ranging between 0.330 through 0.398 inches in diameter.
Static Pressure Ports & Plugs (Bag of 100)
The static pressure port & plug combination is a professional way to cover drill holes left in duct work after Digital TrueFlow® and static pressure testing. The static pressure port is constructed with an adhesive back to ensure a firm hold to all different types of duct materials. The tapered plug is designed to fit properly into the static pressure port center, but can also be used in other holes ranging between 0.330 through 0.398 inches in diameter.
Static Pressure Port specifications:

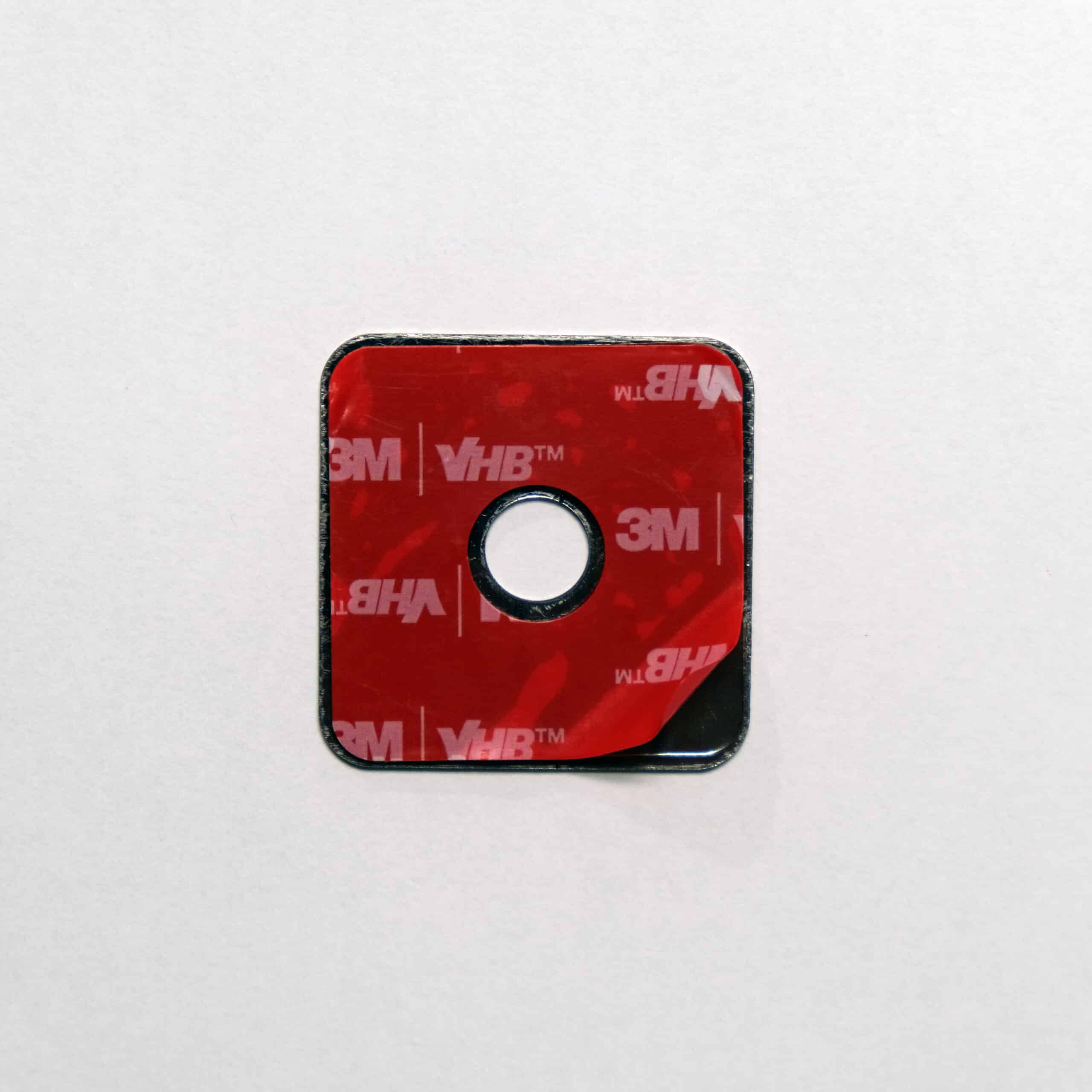

Materials
- Metal: Ferritic (magnetic) stainless steel
- Adhesive: 3M VHB
Size
- Width: 1.58 inch
- Height: 1.58 inch
- Thickness (with adhesive): 0.08 inch
- Inside hole diameter: 0.375 inch
Static Pressure Probe Plug specifications:
Material
- Low-density polyethylene
Fitting style
- Push-fit
Dimensions
- Outside diameter range: 0.330 – .398 inch
- Inside diameter range: 0.275 – 0.327
- Flange diameter: 0.563 inch
- Overall height: 0.375 inch
Static Pressure Ports and Plugs (Bag of 100) includes:
- Quantity 100 Static Pressure Port plates
- Quantity 100 hole plugs
