Digital TrueFlow® Solution – Custom Kit (Grid & DG-1000, 1 Adapter)
$2,663.00
Description
Digital TrueFlow® Solution Full Kit
The Digital TrueFlow® Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow® Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process using a pre-cut or cut-to-fit adapter plate (sold separately). If the filter location is directly adjacent to the air handler, the Digital TrueFlow® Meter will measure the total air handler flow. If the filter is located remotely at a central return, the Digital TrueFlow® Meter will measure airflow through the central return. The Digital TrueFlow® Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup and can be used in a wide range of return plenums and air handler fan configurations. It is proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
The Digital TrueFlow® Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow® Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process using a pre-cut or cut-to-fit adapter plate (sold separately). If the filter location is directly adjacent to the air handler, the Digital TrueFlow® Meter will measure the total air handler flow. If the filter is located remotely at a central return, the Digital TrueFlow® Meter will measure airflow through the central return. The Digital TrueFlow® Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup and can be used in a wide range of return plenums and air handler fan configurations. It is proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 26 × 26 × 8 in |
| Select TrueFlow Filter Adapters; Must select at least 1 adapter | 14 x 20, 16 x 20, 16 x 25, 20 x 20, 20 x 24, 20 x 25, 20 x 30, 24 x 24, 24 x 30, Universa (Cut-to-Fit, up to 25 x 25) |
| Select TrueFlow Filter Adapters | 14 x 20, 16 x 20, 16 x 25, 20 x 20, 20 x 24, 20 x 25, 20 x 30, 24 x 24, 24 x 30, Universal (Cut-to-Fit, up to 25 x 25) |
Related Products
Digital TrueFlow® Solution Full Kit
The Digital TrueFlow® Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow® Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process using a pre-cut or cut-to-fit adapter plate (sold separately). If the filter location is directly adjacent to the air handler, the Digital TrueFlow® Meter will measure the total air handler flow. If the filter is located remotely at a central return, the Digital TrueFlow® Meter will measure airflow through the central return. The Digital TrueFlow® Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup and can be used in a wide range of return plenums and air handler fan configurations. It is proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
The Digital TrueFlow® Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow® Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process using a pre-cut or cut-to-fit adapter plate (sold separately). If the filter location is directly adjacent to the air handler, the Digital TrueFlow® Meter will measure the total air handler flow. If the filter is located remotely at a central return, the Digital TrueFlow® Meter will measure airflow through the central return. The Digital TrueFlow® Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup and can be used in a wide range of return plenums and air handler fan configurations. It is proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
Digital TureFlow® Specifications:
Flow Accuracy
- +/- 5% ¹
Digital Communication
- Bluetooth® low energy, USB 2.0
Measurable Flow Range, CFM (Cubic Feet per Minute)
- 300 to 2500 CFM
Power
- 2,000 mAh lithium-ion polymer rechargeable battery
- USB-C charger/power adapter
Battery Life
- Typically over 24 hours
Auto-off
- 30 minutes

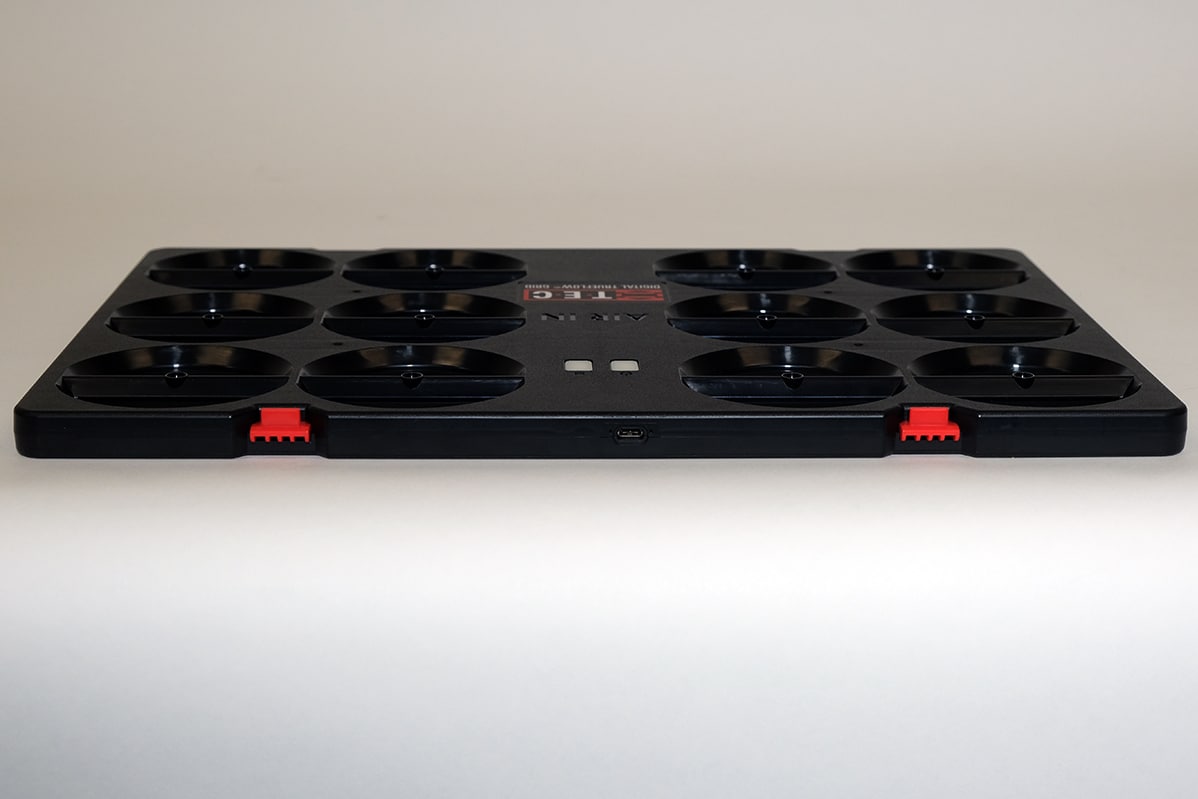

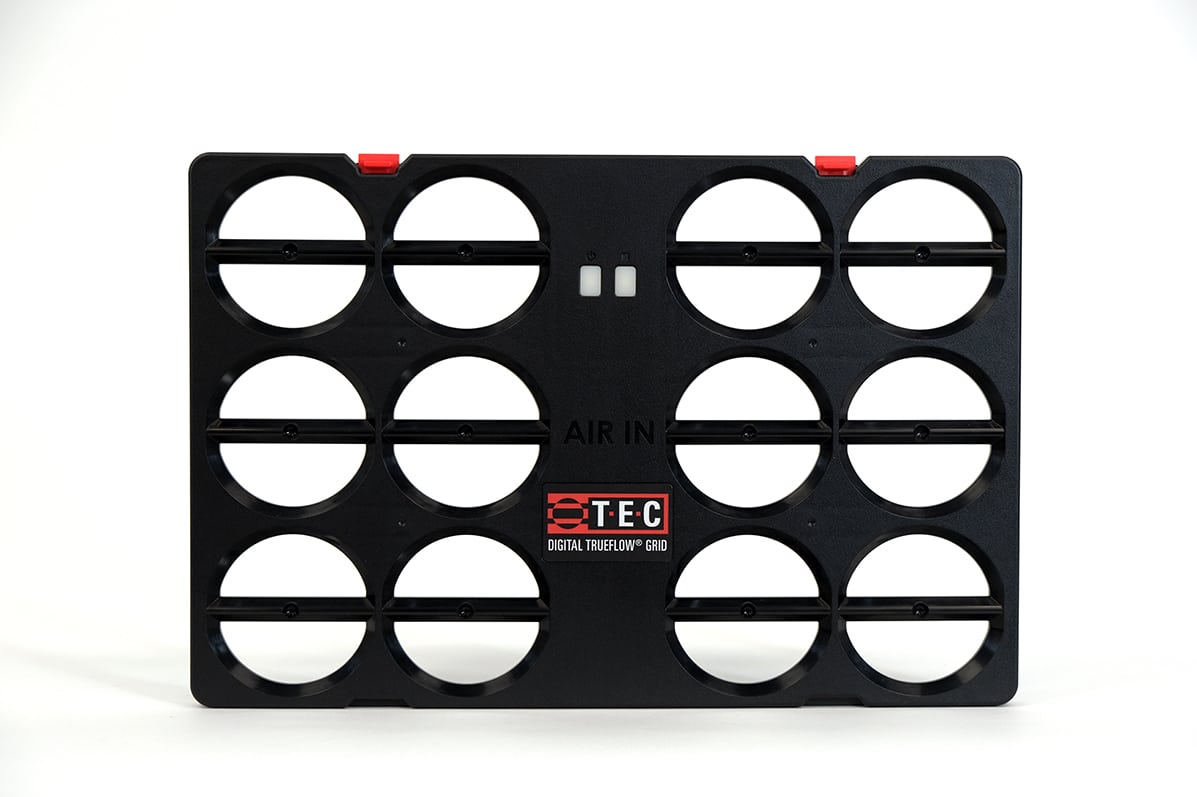

Grid Dimensions
- 18 inch width
- 12 inch height
- 0.75 inch depth
Grid Weight
- 2.1 LBS
Recommended Calibration Interval
- 48 months
Operating Temperature Range
- 32°F to 115°F (0°C to 45°C)
Storage Temperature Range²
- Less than one month: 15°F to 115°F (-10°C to 45°C)
- One month to one year: 32°F to 77°F (0°C to 25°C)
¹ In standard installation with no obstruction 2 inches downstream and 6 inches upstream of Digital TrueFlow Grid.
² Storage limits are based on batteries. Storing outside these limits may require battery replacement.

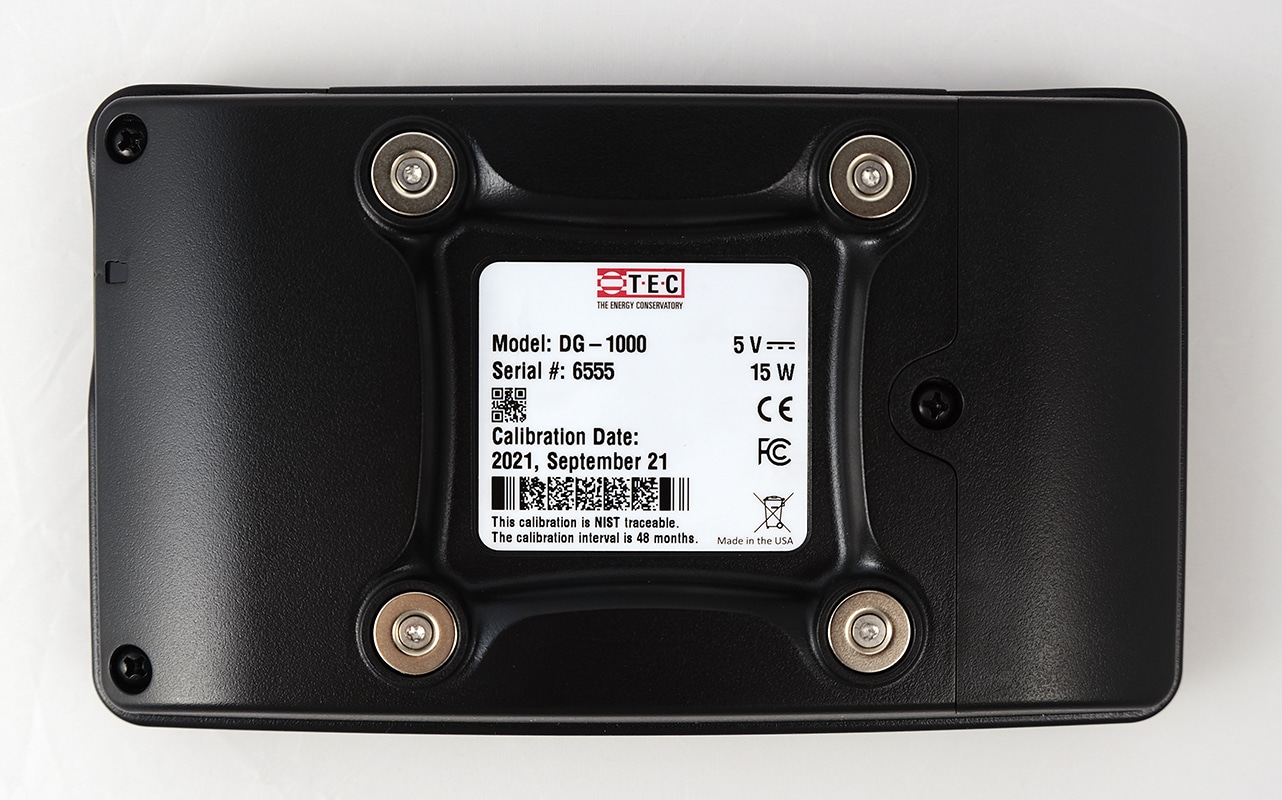

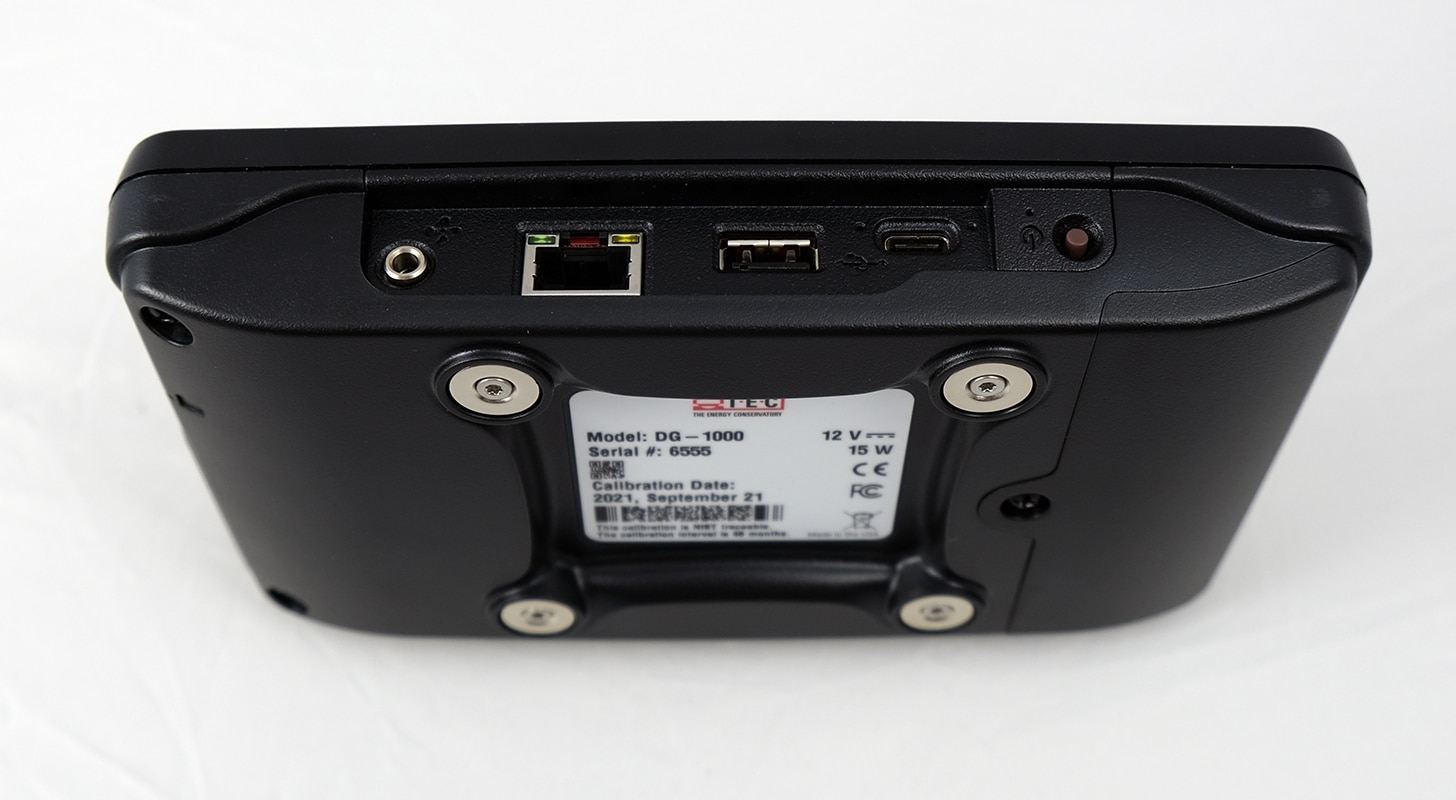

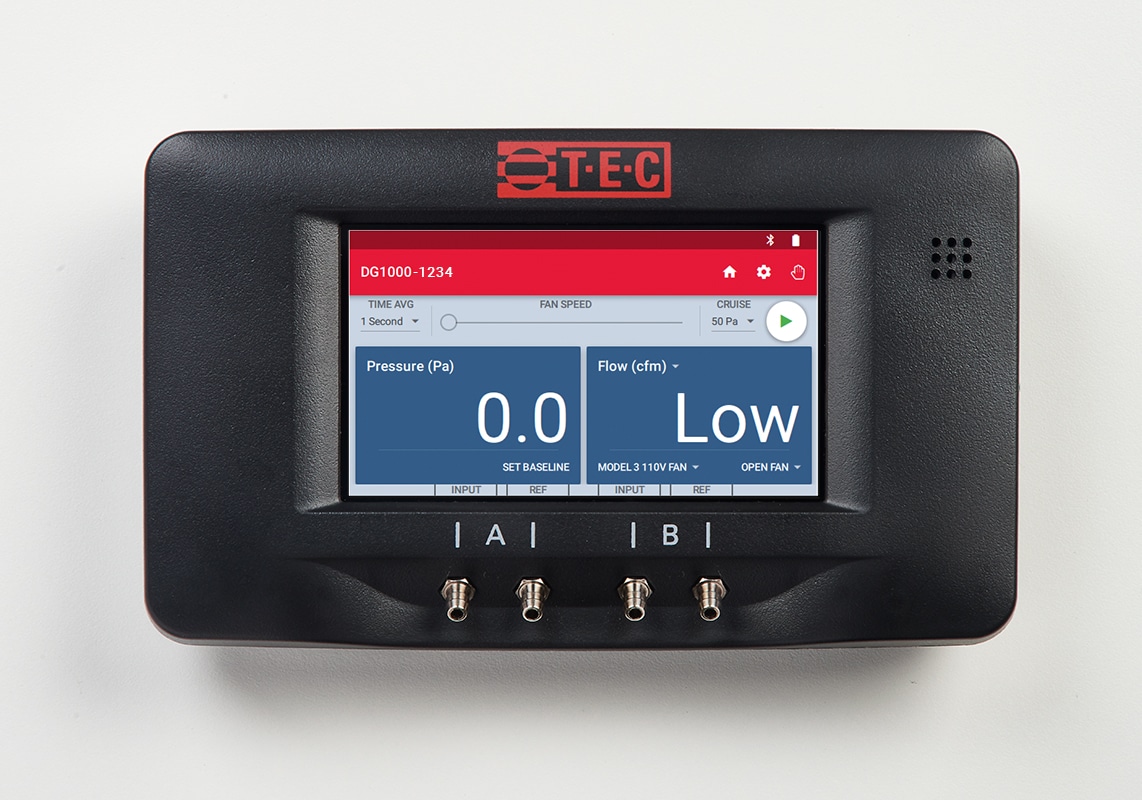

DG-1000 Specifications:
Number of Independent Pressure Channels
- Two
Pressure Range
- -2,500 to +2,500 Pa (-10 to +10 in. H2O)
Display resolution
- 0.1 Pa for readings 0-999.9 Pa
- 1 Pa for readings 1000 Pa and larger
Accuracy at Typical Use Conditions
- 0.9% of pressure reading or 0.12 Pa, whichever is greater
Units of Measure
- Channel A – Pa, in w.c.
- Channel B – Pa, in w.c., CFM, CFM@25, CFM@50, CFM@75, ACH50, CFM@25/ft2, CFM@25/100ft2, CFM@50/ft2, CFM@50/100 ft2, CFM@75/ft2, CFM@75/100 ft2 (flow units of l/s and m3/h also selectable)
Auto-zero
- On start up and then once every 10 seconds. Tilt and motion compensation between auto-zeros.
Time Averaging
- 1, 5, 10 seconds and long-term (continuous update)
Operating Temperature Range
- 42 degrees F to 115 degrees F
Storage Temperature Range
- -4 degrees F to 140 degrees F
Display
- 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen
Display Backlight
- User adjustable – default 40%
Power
- Two 18650 Lithium Ion batteries, replaceable, with AC charger/power adaptor included.
Battery Life
- Over 15 hours of continuous use with default settings
- 13 hours of continuous use with default settings and wifi active
- Use of Bluetooth done not significantly alter battery life of approximately 13 hours of operation.
Auto-Off
- Adjustable from 10 minutes to 2 hours
Languages Supported
- English, German, Spanish, French, Italian, Norwegian, Dutch, Portuguese, Chinese
Dimensions
- 7.0 x 4.2 x 1.4 inches
Weight
- 15.7 oz
Calibration
- Meets ASTM Standard E779-03, E1554-07, CGSB-149.10-M86, EN 13829, ISO 9972, ATTMA Technical Standard 1, NFPA 2001, RESNET AND USACE.
Recommended Calibration Interval
- Four Years

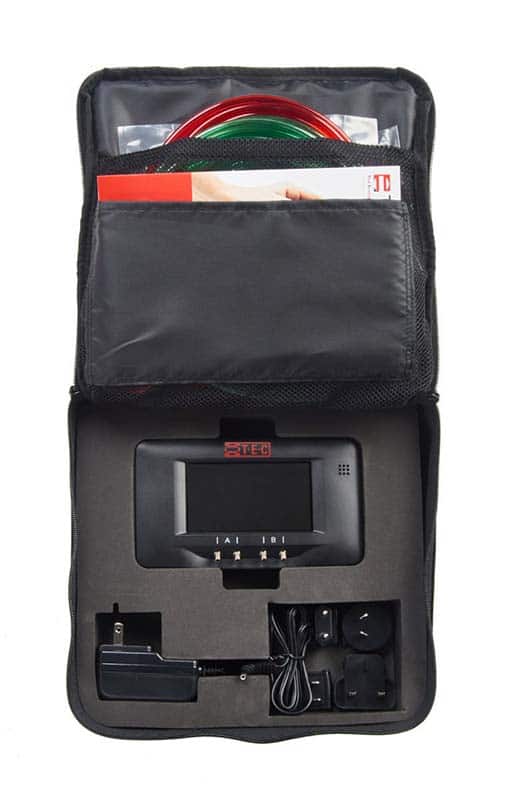

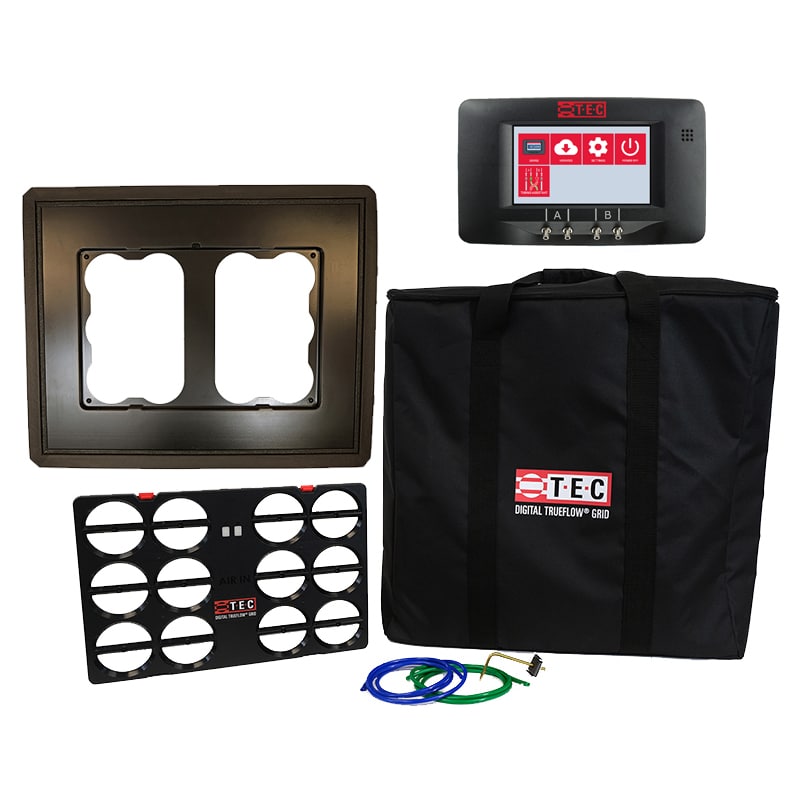

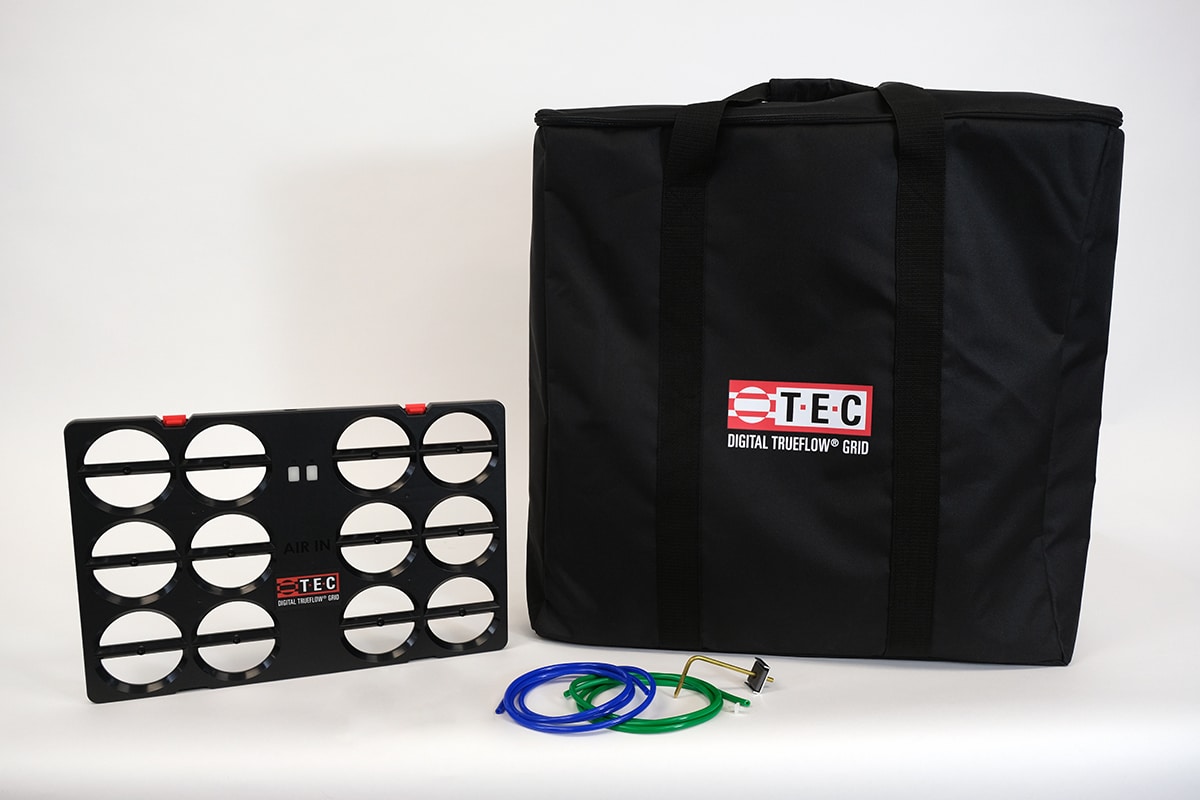

The Digital TrueFlow® Custom Kit with DG-1000 includes:

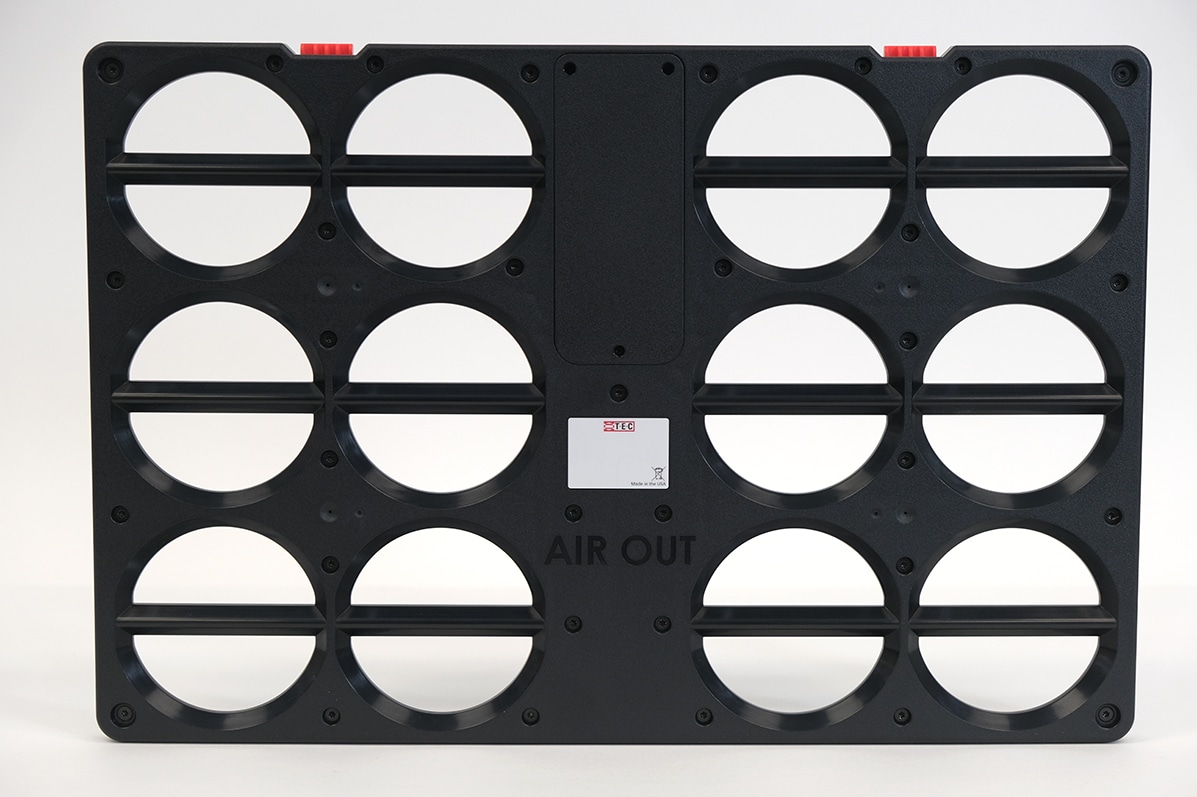

- Digital TrueFlow® Grid
- Digital TrueFlow® Carrying Case
- Magnetic static pressure probe
- Static pressure probe hole plugs
- 5’ blue hose
- 5’ green hose

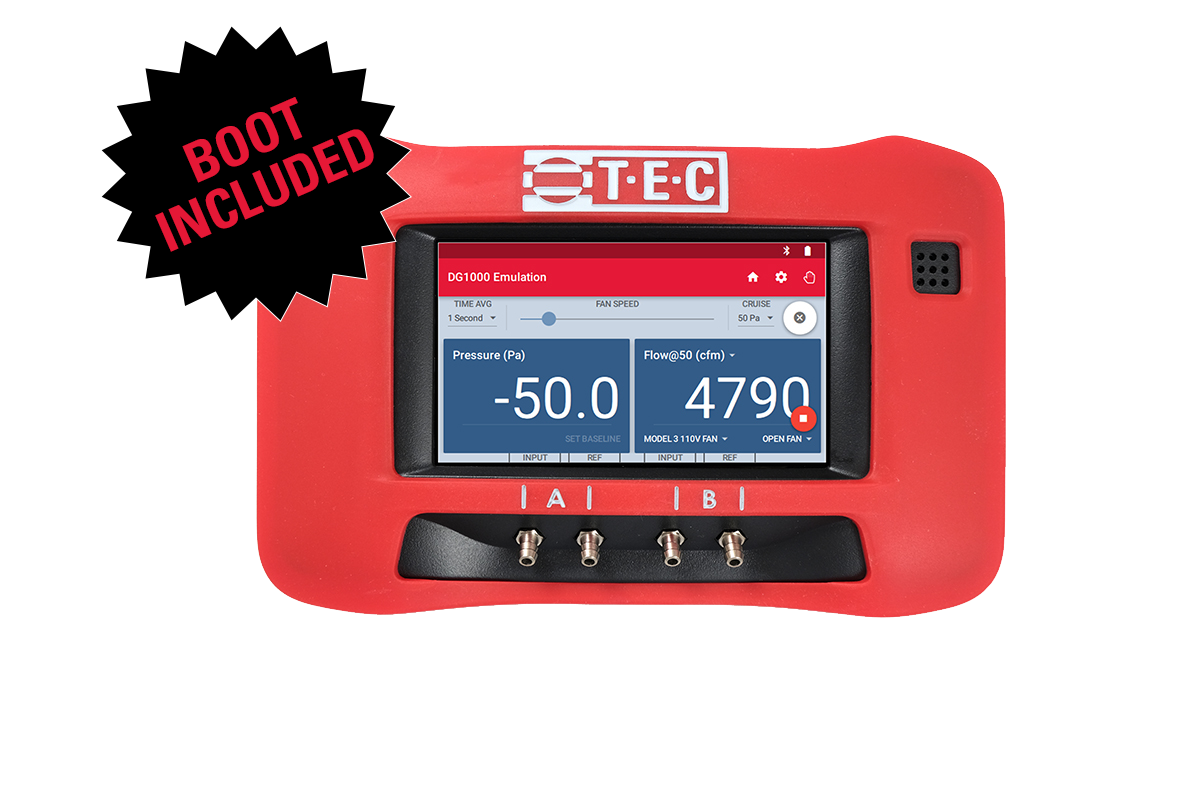

- DG-1000 Digital Pressure and Flow Gauge
- DG-1000 Carrying case
- Two Lithium Ion batteries – installed in DG-1000
- USB-C Charger block and integrated cable
- Screen protector
- 15′ green hose
- 10′ red hose
- Fan control cable
- Digital gauge extension tube
- Plastic hose connectors
- Calibration certificates
