Minneapolis Duct Blaster® System without DG-1000 Gauge
$2,210.00
Description
Minneapolis Duct Blaster® System (no gauge)

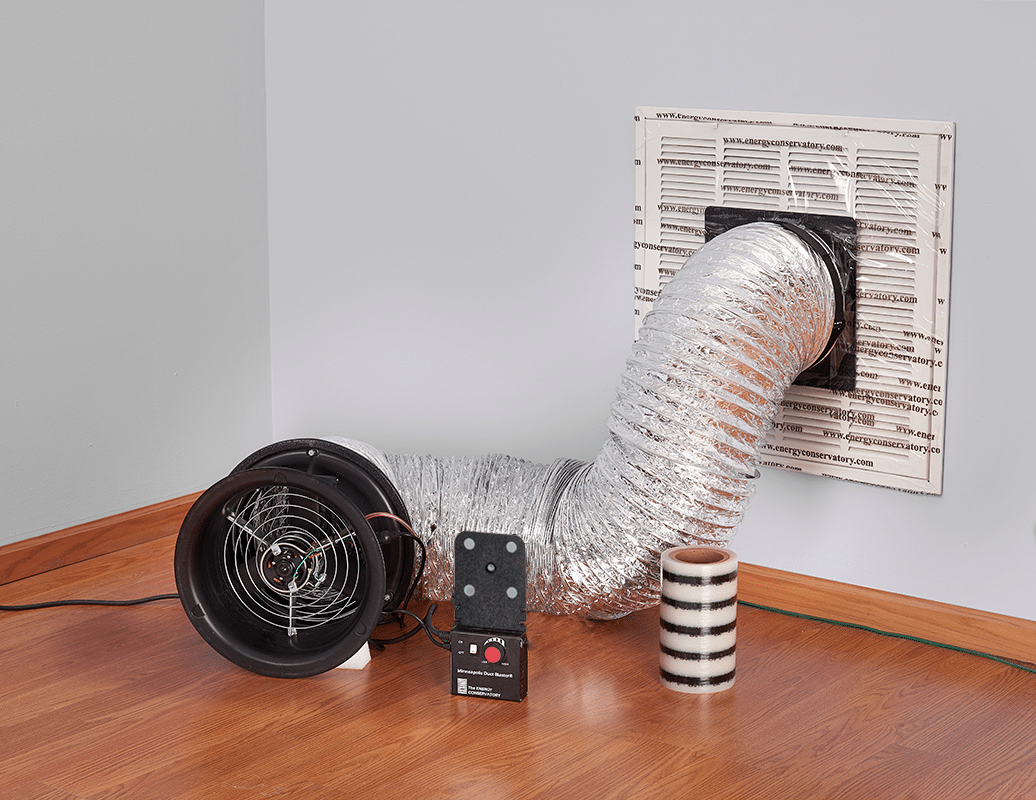

The Minneapolis Duct Blaster® is a calibrated air flow measurement system designed to test and document the airtightness of forced air duct systems in both houses and light commercial buildings.
Minneapolis Duct Blaster® System Features
- Provides quick and accurate airtightness measurements from 10 – 1,500 CFM
- Compatible for both pressurization and depressurization testing
- Lightweight fan weighs only 7 pounds
- Ideal for use in new construction applications where a Blower Door can’t be used (e.g. before sheet rock is installed)
- Use to certify code compliance for total duct leakage and duct leakage to the outside as in IECC 2009 and 2012
Please note: This package does not include the DG-1000 Pressure & Flow Gauge required to conduct testing.
Additional information
| Weight | 1 lbs |
|---|
Related Products
Minneapolis Duct Blaster® System (no gauge)
The Minneapolis Duct Blaster® is a calibrated air flow measurement system designed to test and document the airtightness of forced air duct systems in both houses and light commercial buildings.
Minneapolis Duct Blaster® System Features
- Provides quick and accurate airtightness measurements from 10 – 1,500 CFM
- Compatible for both pressurization and depressurization testing
- Lightweight fan weighs only 7 pounds
- Ideal for use in new construction applications where a Blower Door can’t be used (e.g. before sheet rock is installed)
- Use to certify code compliance for total duct leakage and duct leakage to the outside as in IECC 2009 and 2012
Please note: This package does not include the DG-1000 Pressure & Flow Gauge required to conduct testing.
Minneapolis Duct Blaster® Kit (no gauge) Specifications:

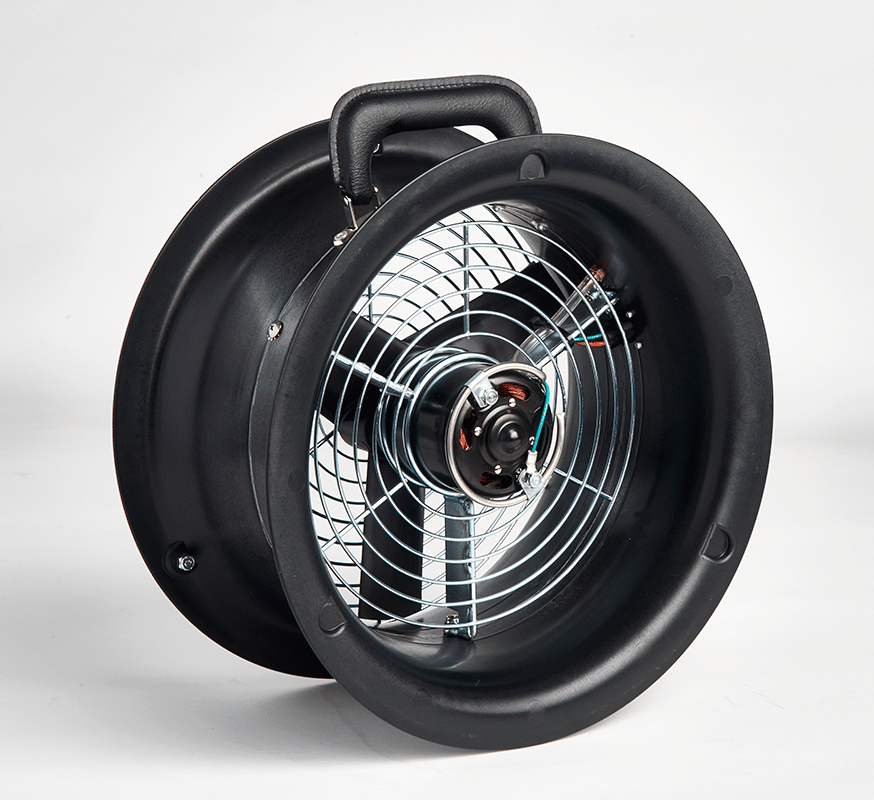

Duct Blaster® Fan:
Maximum Flow
- 1,550 CFM at free air (731 l/s, 2,633 m3/h)
- 1,450 CFM at 25 Pa (684 l/s, 2,463 m3/h)
- 1,410 CFM at 50 Pa (665 l/s, 2,395 m3/h)
With Flex Duct Attached
- 1,150 CFM at free air (542 l/s, 1,954 m3/h)
- 1,075 CFM at 25 Pa (507 l/s, 1,826 m3/h)
- 1,025 CFM at 50 Pa (483 l/s, 1,741 m3/h)
With Flex Duct, Ring 1, and Flow Conditioner (depressurization) Attached
- 750 CFM at free air (354 l/s, 1,274 m3/h)
- 725 CFM at 25 Pa (342 l/s, 1,231 m3/h)
- 700 CFM at 50 Pa (330 l/s, 1,189 m3/h)
Minimum Flow

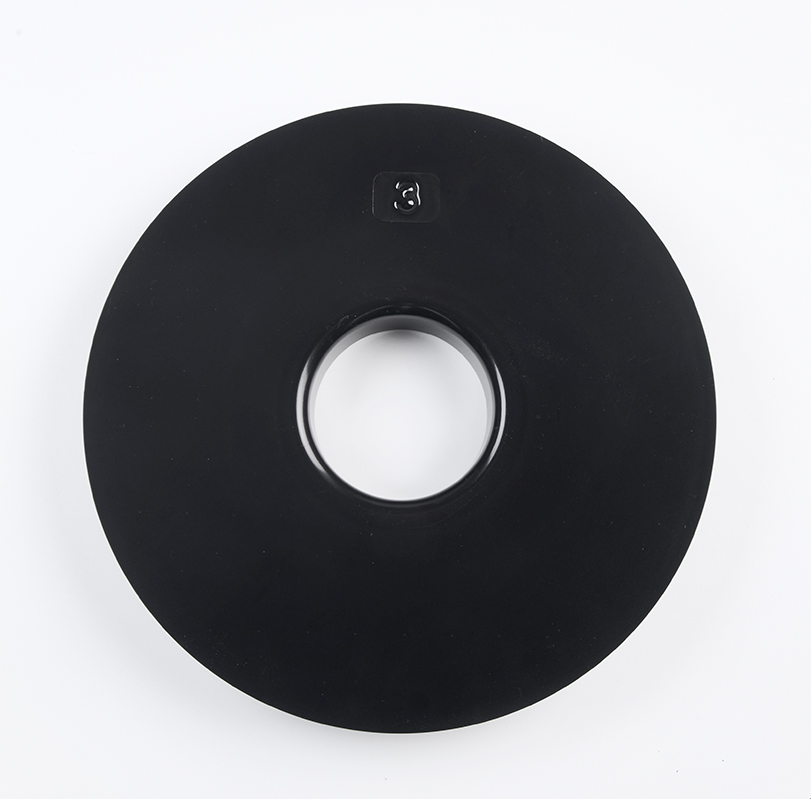

- 10 CFM with Ring 3 (5 l/s, 17 m3/h)
- 2.4 CFM with Optional Ring 4 (1.1 l/s, 4 m3/h)
Fan Dimensions
- 10 inches (25 cm) inlet diameter, 7 in (17.8 cm) length
Fan Weight
- 7 lbs (3.18 kg)
- 8.5 lbs (3.86 kg) with 3 flow rings
Flow Accuracy
- ±3% with DG-1000
Calibration
- Meets ASTM Standard E779, CGSB-149.10-M86, EN 3829, ISO 9972, ATTMA Technical Standard 1, NFPA 2001, ASHRAE 152, RESNET and USACE
Power
- 100V-240V
- 50 or 60Hz
- 360 watt maximum watt draw

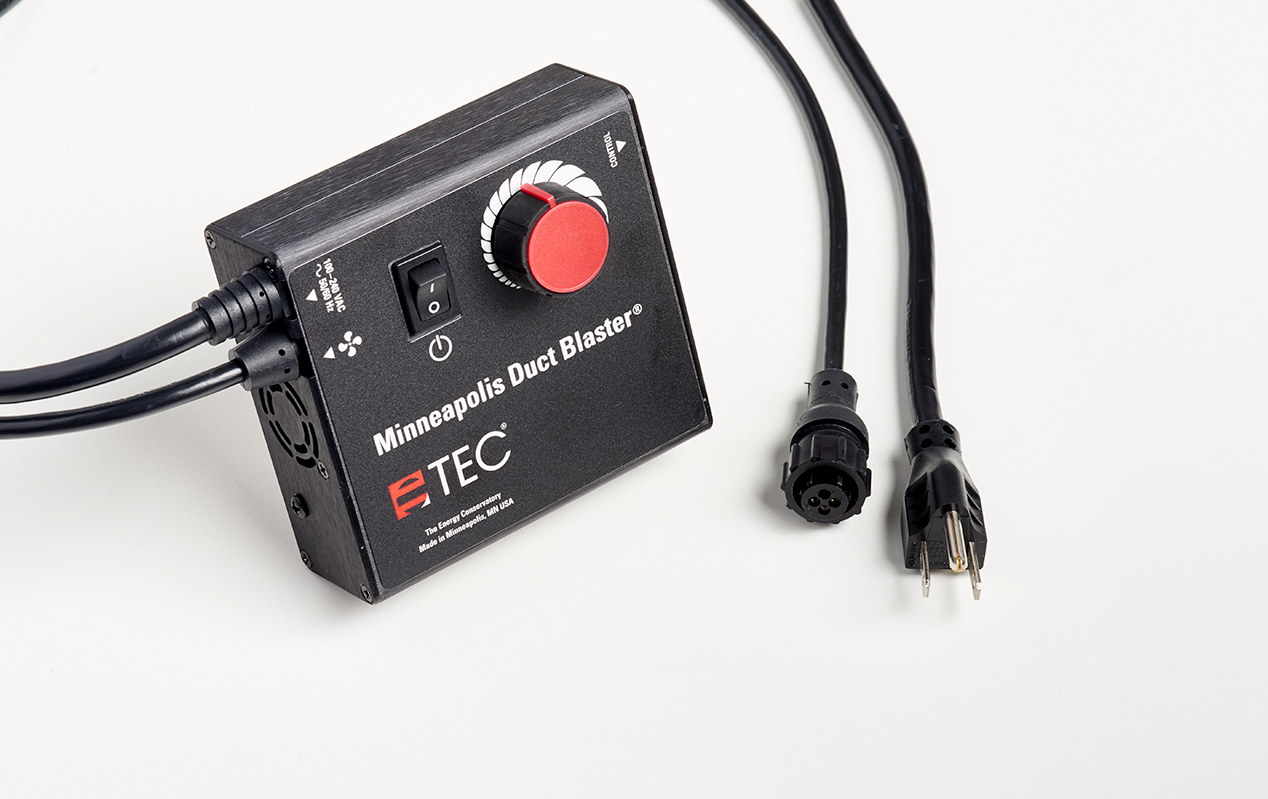

Fan Speed Controller:
Power Requirements:
- 100-240V
- 50 or 60 Hz
Case Material
- Anodized Aluminum
Dimensions
- Case: 4.4 x 4.1 x 1.6 inch (WxHxL)
- Power Cord Length: 10 feet
- Fan Connect Cord Length: 8 feet
Minneapolis Duct Blaster® kit (no gauge) includes:

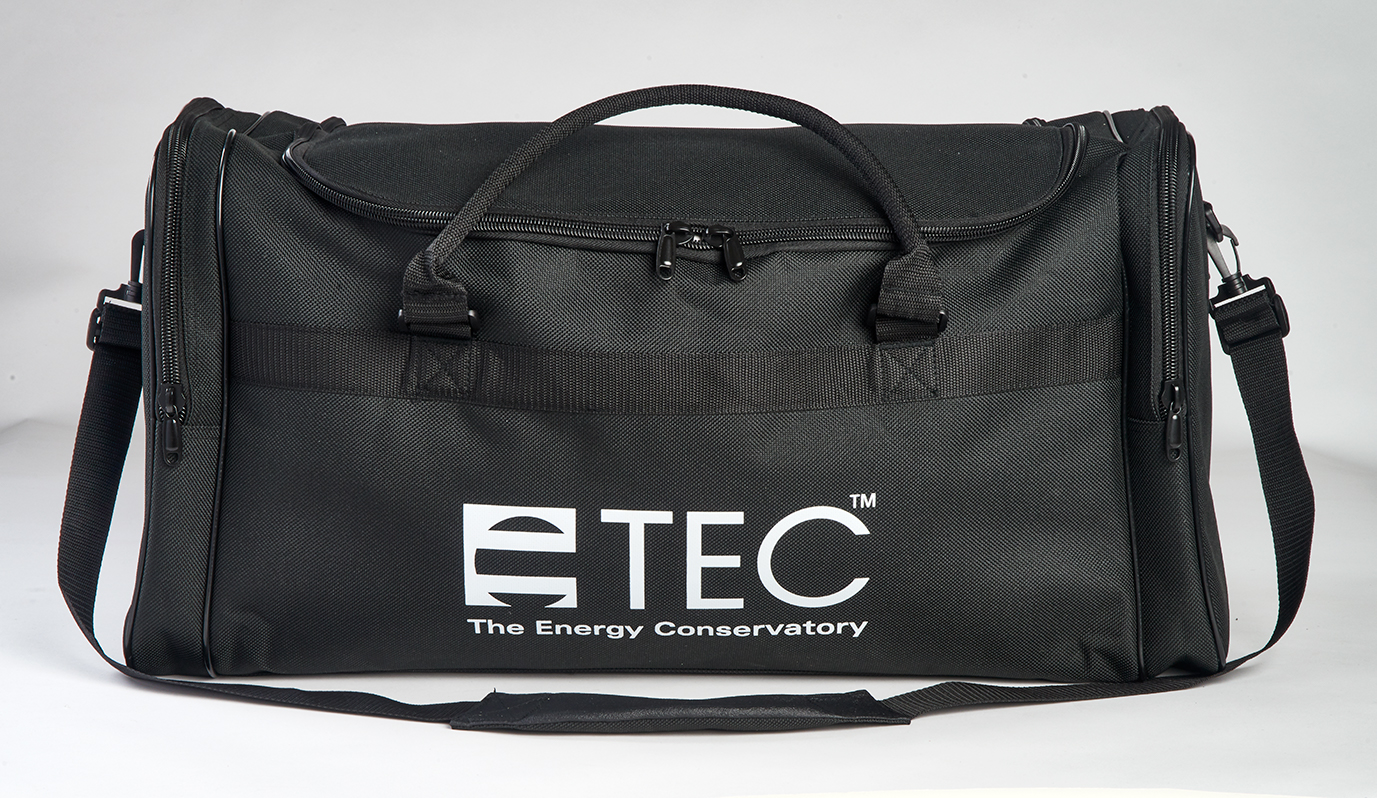

- Carrying case
- Series B Duct Blaster® fan
- Fan speed controller

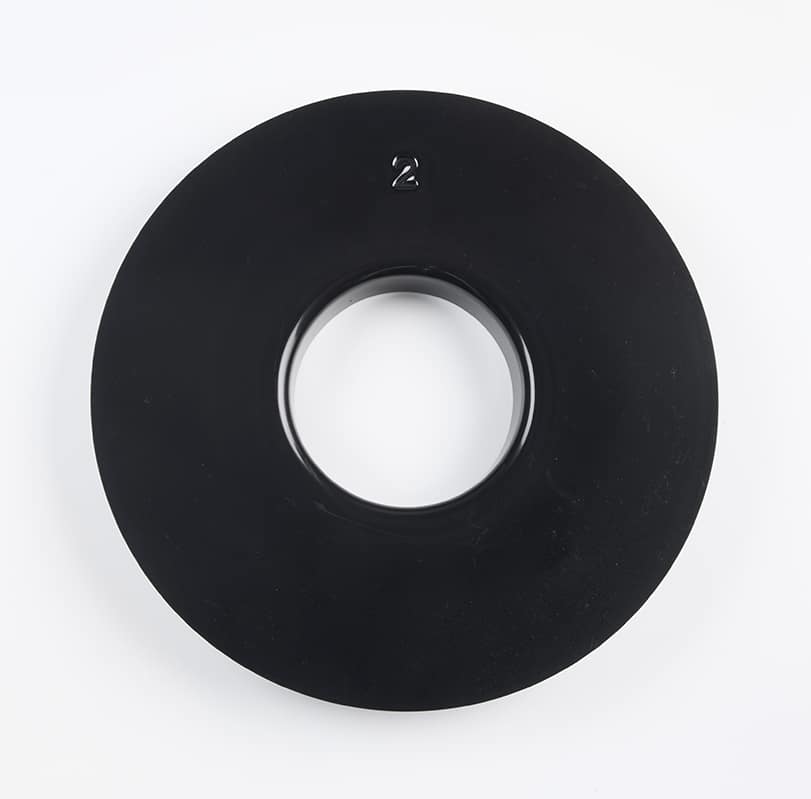

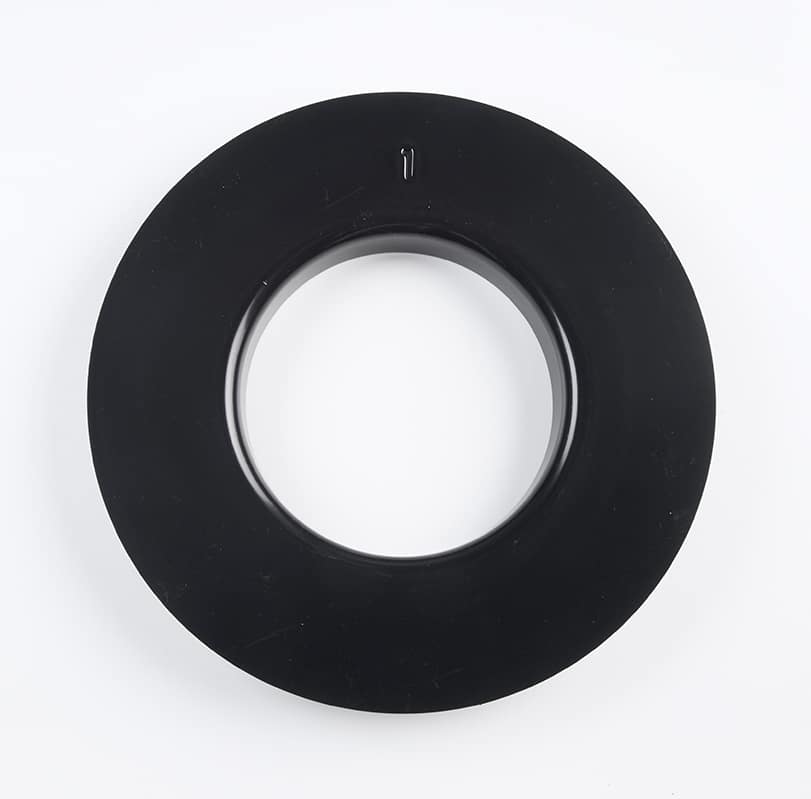

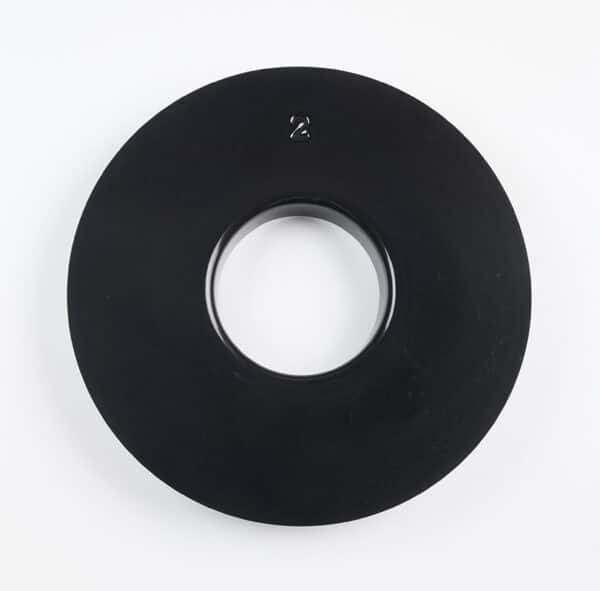

- Fan flow rings 1, 2, and 3
- Fabric fan cover
- Foam flow conditioner
- Foam foot
- Round transition piece
- Square transition piece
- Flex duct (10″ wide x 12′ long) with velcro straps
- Fan trim pieces
- Gauge board with clamp
- Sample roll of duct mask premium register sealing tape (8″ x 100′)
- Static pressure probe
- 30′ clear tubing
- Overview booklet
